a viewer that displays 1d data More...

#include <one_d_viewer.h>

Inheritance diagram for jocassview::OneDViewer:

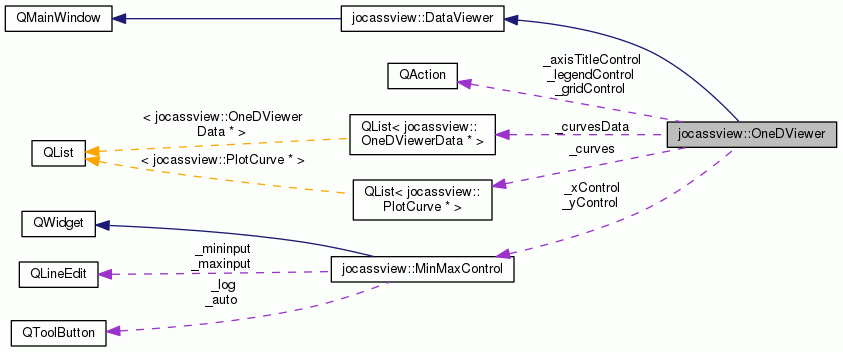

Collaboration diagram for jocassview::OneDViewer:

Public Member Functions
	OneDViewer (QString title, QWidget *parent=0)
	constructor More...

virtual	~OneDViewer ()
	destructor More...

virtual QList< Data * >	data ()
	retrieve the displayed data More...

virtual QString	type () const
	retrieve the type of the data viewer More...

virtual void	saveData (const QString &filename)
	save the data to file More...

virtual void	dataChanged ()
	update the plot More...

virtual QStringList	dataFileSuffixes () const
	suffixes for the data of this viewer More...

Public Member Functions inherited from jocassview::DataViewer
	DataViewer (QString title, QWidget *parent)
	constructor More...

virtual	~DataViewer ()
	destructor More...

virtual void	print () const
	print the plot More...

Public Member Functions inherited from QMainWindow
	TabShape

	ToolButtonStyle

	QMainWindow (QWidget *parent=0, Qt::WindowFlags flags=0)

	addDockWidget (Qt::DockWidgetArea area, QDockWidget *dockwidget)

	addDockWidget (Qt::DockWidgetArea area, QDockWidget *dockwidget, Qt::Orientation orientation)

	addToolBar (Qt::ToolBarArea area, QToolBar *toolbar)

	addToolBar (QToolBar *toolbar)

	addToolBar (const QString &title)

	addToolBarBreak (Qt::ToolBarArea area=Qt::TopToolBarArea)

	centralWidget ()

	contextMenuEvent (QContextMenuEvent *event)

	DockWidgetArea QMainWindow::corner(Qt::Corner corner)

	createPopupMenu ()

	DockWidgetArea QMainWindow::dockWidgetArea(QDockWidget *dockwidget)

	event (QEvent *event)

	iconSizeChanged (const QSize &iconSize)

	insertToolBar (QToolBar before, QToolBar toolbar)

	insertToolBarBreak (QToolBar *before)

	menuBar ()

	menuWidget ()

	removeDockWidget (QDockWidget *dockwidget)

	removeToolBar (QToolBar *toolbar)

	removeToolBarBreak (QToolBar *before)

	restoreDockWidget (QDockWidget *dockwidget)

	restoreState (const QByteArray &state, int version=0)

	saveState (int version=0)

	setCentralWidget (QWidget *widget)

	setCorner (Qt::Corner corner, Qt::DockWidgetArea area)

	setMenuBar (QMenuBar *menuBar)

	setMenuWidget (QWidget *menuBar)

	setStatusBar (QStatusBar *statusbar)

	setTabPosition (Qt::DockWidgetAreas areas, QTabWidget::TabPosition tabPosition)

	splitDockWidget (QDockWidget first, QDockWidget second, Qt::Orientation orientation)

	statusBar ()

	TabPosition QMainWindow::tabPosition(Qt::DockWidgetArea area)

	tabifiedDockWidgets (QDockWidget *dockwidget)

	tabifyDockWidget (QDockWidget first, QDockWidget second)

	ToolBarArea QMainWindow::toolBarArea(QToolBar *toolbar)

	toolBarBreak (QToolBar *toolbar)

	toolButtonStyleChanged (Qt::ToolButtonStyle toolButtonStyle)

	data ()

	iterator_category

	const_iterator ()

	const_iterator (const iterator &other)

	key ()

	value ()

	operator!= (const const_iterator &other)

	operator* ()

	operator+ (int j)

	operator++ ()

	operator++ (int)

	operator+= (int j)

	operator- (int j)

	operator-- ()

	operator-- (int)

	operator-= (int j)

	operator-& gt;()

	operator== (const const_iterator &other)

	data ()

	iterator_category

	iterator ()

	key ()

	value ()

	operator!= (const iterator &other)

	operator!= (const const_iterator &other)

	operator* ()

	operator+ (int j)

	operator++ ()

	operator++ (int)

	operator+= (int j)

	operator- (int j)

	operator-- ()

	operator-- (int)

	operator-= (int j)

	operator-& gt;()

	operator== (const iterator &other)

	operator== (const const_iterator &other)

	erase (const Key &key)

	insert (const Key &key, const T &value, bool overwrite)

	remove (iterator it)

	replace (const Key &key, const T &value)

Private Slots
void	replot ()
	redraw the plot More...

void	on_legend_right_clicked (QPoint pos)
	react when an legend item has been selected More...

void	on_legend_checked (const QVariant &item, bool on)
	react when an legend item has been clicked More...

void	change_curve_color (PlotCurve *curve=0)
	change the curves color More...

void	change_curve_width (PlotCurve *curve=0)
	change the curves line width More...

void	remove_curve (PlotCurve *curve=0)
	remove the curve from the plot More...

void	on_add_graph_triggered ()
	react when addGraph action has been triggered More...

void	on_grid_triggered ()
	react on when the gridControl has been triggered More...

Private Attributes
MinMaxControl *	_xControl
	control for the x-axis More...

MinMaxControl *	_yControl
	control for the y-axis More...

QList< PlotCurve * >	_curves
	this plots curves More...

QList< OneDViewerData * >	_curvesData
	this plots curves More...

QAction *	_gridControl
	an action to control the grid in the plot More...

QwtPlotGrid *	_grid
	a grid in the plot More...

quint8	_gridLines
	flags to tell which grid lines should be drawn More...

QAction *	_legendControl
	an action to control the legend of curves More...

QwtLegend *	_legend
	a legend for the different curves More...

QAction *	_axisTitleControl
	an action to control the legend of curves More...

Additional Inherited Members
Signals inherited from jocassview::DataViewer
void	viewerClosed (DataViewer *viewer)
	signal emitted when viewer is about to be destroyed More...

Protected Member Functions inherited from jocassview::DataViewer
void	closeEvent (QCloseEvent *event)
	react when a close event is send to this viewer More...

void	moveEvent (QMoveEvent *event)
	receive move events to store the current position to the settings More...

void	resizeEvent (QResizeEvent *event)
	receive resize events to store the current size to the settings More...

Protected Attributes inherited from jocassview::DataViewer
QwtPlot *	_plot
	the plot inside which the data will be displayed More...

Detailed Description

a viewer that displays 1d data

Author: Stephan Kassemeyer; Lutz Foucar

Definition at line 37 of file one_d_viewer.h.

Constructor & Destructor Documentation

OneDViewer::OneDViewer	(	QString	title,
		QWidget *	parent = `0`
	)

constructor

Parameters

title	The title of this view
parent	The parent of this

Definition at line 57 of file one_d_viewer.cpp.

References _axisTitleControl, _curves, _grid, _gridControl, _gridLines, _legend, _legendControl, jocassview::DataViewer::_plot, _xControl, _yControl, QToolBar::addAction(), QToolBar::addSeparator(), QMainWindow::addToolBar(), QSettings::beginGroup(), QTime::currentTime(), data(), QSettings::endGroup(), on_add_graph_triggered(), on_grid_triggered(), on_legend_checked(), on_legend_right_clicked(), replot(), QMainWindow::setCentralWidget(), QPen::setColor(), QWidgetAction::setDefaultWidget(), QPen::setWidth(), size, and QSettings::value().

OneDViewer::~OneDViewer ( )

virtual

destructor

Definition at line 153 of file one_d_viewer.cpp.

Member Function Documentation

void OneDViewer::change_curve_color ( PlotCurve * curve = 0 )

privateslot

change the curves color

if no parameter is given try to retrieve the curve from the sender signal that is connected to this slot. We're assuming this is an QAction whos parent is the curve.

Parameters

curve the curve to change is the senders parent widget

Definition at line 334 of file one_d_viewer.cpp.

References _legend, jocassview::DataViewer::_plot, QColorDialog::getColor(), and replot().

Referenced by on_legend_right_clicked().

void OneDViewer::change_curve_width ( PlotCurve * curve = 0 )

privateslot

change the curves line width

if no parameter is given try to retrieve the curve from the sender signal that is connected to this slot. We're assuming this is an QAction whos parent is the curve.

Parameters

curve the curve to change is the senders parent widget

Definition at line 354 of file one_d_viewer.cpp.

References _legend, jocassview::DataViewer::_plot, QInputDialog::getInt(), replot(), and cass::ACQIRIS::width.

Referenced by on_legend_right_clicked().

QList< Data * > OneDViewer::data ( )

virtual

retrieve the displayed data

Returns: pointer to the viewed data

Implements jocassview::DataViewer.

Definition at line 158 of file one_d_viewer.cpp.

References jocassview::DataViewer::_plot, and QList::append().

Referenced by on_add_graph_triggered(), OneDViewer(), replot(), and saveData().

void OneDViewer::dataChanged ( )

virtual

update the plot

Reimplemented from jocassview::DataViewer.

Definition at line 206 of file one_d_viewer.cpp.

References replot().

QStringList OneDViewer::dataFileSuffixes ( ) const

virtual

suffixes for the data of this viewer

Returns: suffixes for the data of this viewer

Implements jocassview::DataViewer.

Definition at line 211 of file one_d_viewer.cpp.

void OneDViewer::on_add_graph_triggered ( )

privateslot

react when addGraph action has been triggered

use the openfile dialog to get the graph. Then use the FileHandler to retrieve the data form the file.

ask the user from which source the added graph should come

if the source should be a new one, ask the user for the filename of the new source and add it to the list of sources

retrieve the list of items that are available from the source, if more than 1 ask the user which should be added

retrieve the result from the source and check if it is a 1d result

create a new data container and add the result to it

add a new curve to the plot and intialize it with the data and a random color then set up the legenditem and its context menu for the curve

and replot the plot

Definition at line 392 of file one_d_viewer.cpp.

References _curves, _legend, jocassview::DataViewer::_plot, jocassview::DataSourceManager::addSource(), QMessageBox::critical(), QDir::currentPath(), jocassview::DataSourceManager::currentSourceName(), data(), QColor::fromHsv(), QInputDialog::getItem(), QFileDialog::getOpenFileName(), QStringList::indexOf(), QString::isEmpty(), on_legend_right_clicked(), replot(), jocassview::DataSource::result(), jocassview::DataSource::resultNames(), jocassview::OneDViewerData::setResult(), jocassview::Data::setSourceName(), QPen::setWidth(), jocassview::DataSourceManager::source(), jocassview::DataSourceManager::sourceNames(), and QObject::tr().

Referenced by OneDViewer().

void OneDViewer::on_grid_triggered ( )

privateslot

react on when the gridControl has been triggered

increase the the _gridLines variable and mask off the unneeded bits

Definition at line 464 of file one_d_viewer.cpp.

References _gridLines, and replot().

Referenced by OneDViewer().

void OneDViewer::on_legend_checked	(	const QVariant &	item,
		bool	on
	)

privateslot

react when an legend item has been clicked

toggle hide / show the curve

Parameters

item	the plot item assiciated with the legend entry
on	when true the associated curve will be shown

Definition at line 327 of file one_d_viewer.cpp.

References jocassview::DataViewer::_plot, and replot().

Referenced by OneDViewer().

void OneDViewer::on_legend_right_clicked ( QPoint pos )

privateslot

react when an legend item has been selected

open a context menue at the position of the legenditem.

Parameters

pos	the position where the context menu should be opened

check if the sender of the signal is of widget type (is the legend item)

retrieve the legenditem widget and the corresponding curve, determine the position where the right click happen to be able to open the menu at this position

create the context menu and execute it (block in this function until a choice has been made).

In case this is the main curve (name is the name of the main curve), don't add the option to delete the curve. Otherwise create and connect their triggered signals to the appropriate private slots that will react on the choice.

Definition at line 290 of file one_d_viewer.cpp.

References _legend, jocassview::DataViewer::_plot, change_curve_color(), change_curve_width(), QWidget::mapToGlobal(), and remove_curve().

Referenced by on_add_graph_triggered(), and OneDViewer().

void OneDViewer::remove_curve ( PlotCurve * curve = 0 )

privateslot

remove the curve from the plot

if no parameter is given try to retrieve the curve from the sender signal that is connected to this slot. We're assuming this is an QAction whos parent is the curve.

Parameters

curve the curve to remove from the plot

Definition at line 375 of file one_d_viewer.cpp.

References _curves, _legend, jocassview::DataViewer::_plot, and replot().

Referenced by on_legend_right_clicked().

void OneDViewer::replot ( )

privateslot

redraw the plot

check if grid should be enabled

hide /show the legend (this is a hack, since legends can't be directly hidden) retrieve all curve plots from the plot and get theier corresponding legend widget. This needs to be hidden and then the legend to be updated

set the scales to be log or linear

check if autoscale, and set the axis limits

display the axis titles

update the layout and replot the plot

save the states of the controls

Definition at line 218 of file one_d_viewer.cpp.

References _axisTitleControl, _curves, _grid, _gridLines, _legend, _legendControl, jocassview::DataViewer::_plot, _xControl, _yControl, jocassview::MinMaxControl::autoscale(), QSettings::beginGroup(), data(), QSettings::endGroup(), QString::fromStdString(), front, jocassview::MinMaxControl::log(), jocassview::MinMaxControl::max(), jocassview::MinMaxControl::min(), QSettings::setValue(), jocassview::OneDViewerData::setXRangeForLog(), jocassview::OneDViewerData::setYRangeForLog(), cass::ACQIRIS::width, and cass::Result< float >::xAxis.

Referenced by change_curve_color(), change_curve_width(), dataChanged(), on_add_graph_triggered(), on_grid_triggered(), on_legend_checked(), OneDViewer(), and remove_curve().

void OneDViewer::saveData ( const QString & filename )

virtual

save the data to file

Parameters

filename the filename to save the data to

when the filename indicates that it should be saved as png, do so

otherwise store the data individually as data files

Implements jocassview::DataViewer.

Definition at line 175 of file one_d_viewer.cpp.

References QList::begin(), data(), QList::end(), QFileInfo::exists(), QString::fromStdString(), QString::insert(), jocassview::FileHandler::isContainerFile(), QString::lastIndexOf(), QPixmap::save(), jocassview::FileHandler::saveData(), QFileInfo::suffix(), and QString::toUpper().

QString OneDViewer::type ( ) const

virtual

retrieve the type of the data viewer

Returns: the type as name

Implements jocassview::DataViewer.

Definition at line 170 of file one_d_viewer.cpp.

Member Data Documentation

QAction* jocassview::OneDViewer::_axisTitleControl

private

an action to control the legend of curves

Definition at line 172 of file one_d_viewer.h.

Referenced by OneDViewer(), and replot().

QList<PlotCurve*> jocassview::OneDViewer::_curves

private

this plots curves

Definition at line 151 of file one_d_viewer.h.

Referenced by on_add_graph_triggered(), OneDViewer(), remove_curve(), and replot().

QList<OneDViewerData*> jocassview::OneDViewer::_curvesData

private

this plots curves

Definition at line 154 of file one_d_viewer.h.

QwtPlotGrid* jocassview::OneDViewer::_grid

private

a grid in the plot

Definition at line 160 of file one_d_viewer.h.

Referenced by OneDViewer(), and replot().

QAction* jocassview::OneDViewer::_gridControl

private

an action to control the grid in the plot

Definition at line 157 of file one_d_viewer.h.

Referenced by OneDViewer().

quint8 jocassview::OneDViewer::_gridLines

private

flags to tell which grid lines should be drawn

Definition at line 163 of file one_d_viewer.h.

Referenced by on_grid_triggered(), OneDViewer(), and replot().

QwtLegend* jocassview::OneDViewer::_legend

private

a legend for the different curves

Definition at line 169 of file one_d_viewer.h.

Referenced by change_curve_color(), change_curve_width(), on_add_graph_triggered(), on_legend_right_clicked(), OneDViewer(), remove_curve(), and replot().

QAction* jocassview::OneDViewer::_legendControl

private

an action to control the legend of curves

Definition at line 166 of file one_d_viewer.h.

Referenced by OneDViewer(), and replot().

MinMaxControl* jocassview::OneDViewer::_xControl

private

control for the x-axis

Definition at line 145 of file one_d_viewer.h.

Referenced by OneDViewer(), and replot().

MinMaxControl* jocassview::OneDViewer::_yControl

private

control for the y-axis

Definition at line 148 of file one_d_viewer.h.

Referenced by OneDViewer(), and replot().

The documentation for this class was generated from the following files:

Public Member Functions

Private Slots

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
