Definitions and structures for CORSIKA Cherenkov light interface. More...

#include "io_basic.h"
#include "mc_atmprof.h"

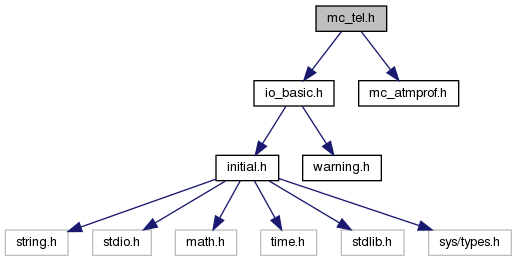

Include dependency graph for mc_tel.h:

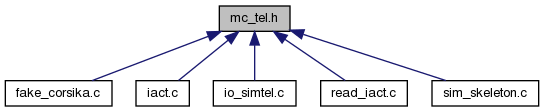

This graph shows which files directly or indirectly include this file:

Data Structures
struct	bunch
	Photons collected in bunches of identical direction, position, time, and wavelength. More...

struct	compact_bunch
	The compact_bunch struct is equivalent to the bunch struct except that we try to use less memory. More...

struct	linked_string
	The linked_string is mainly used to keep CORSIKA input. More...

struct	photo_electron
	A photo-electron produced by a photon hitting a pixel. More...

struct	shower_extra_parameters
	Extra shower parameters of unspecified nature. More...

Macros
#define	_MC_TEL_LOADED 2

#define	IO_TYPE_MC_ATMPROF (IO_TYPE_MC_BASE+16)

#define	IO_TYPE_MC_BASE 1200

#define	IO_TYPE_MC_EVTE (IO_TYPE_MC_BASE+9)

#define	IO_TYPE_MC_EVTH (IO_TYPE_MC_BASE+2)

#define	IO_TYPE_MC_EXTRA_PARAM (IO_TYPE_MC_BASE+15)

#define	IO_TYPE_MC_INPUTCFG (IO_TYPE_MC_BASE+12)

#define	IO_TYPE_MC_LAYOUT (IO_TYPE_MC_BASE+6)

#define	IO_TYPE_MC_LONGI (IO_TYPE_MC_BASE+11)

#define	IO_TYPE_MC_PE (IO_TYPE_MC_BASE+8)

#define	IO_TYPE_MC_PHOTONS (IO_TYPE_MC_BASE+5)

#define	IO_TYPE_MC_RUNE (IO_TYPE_MC_BASE+10)

#define	IO_TYPE_MC_RUNH (IO_TYPE_MC_BASE+0)

#define	IO_TYPE_MC_TELARRAY (IO_TYPE_MC_BASE+4)

#define	IO_TYPE_MC_TELARRAY_END (IO_TYPE_MC_BASE+14)

#define	IO_TYPE_MC_TELARRAY_HEAD (IO_TYPE_MC_BASE+13)

#define	IO_TYPE_MC_TELOFF (IO_TYPE_MC_BASE+3)

#define	IO_TYPE_MC_TELPOS (IO_TYPE_MC_BASE+1)

#define	IO_TYPE_MC_TRIGTIME (IO_TYPE_MC_BASE+7)

Typedefs
typedef short	INT16

typedef int	INT32

typedef float	real

typedef struct shower_extra_parameters	ShowerExtraParam

typedef unsigned short	UINT16

typedef unsigned int	UINT32

Functions
int	begin_read_tel_array (IO_BUFFER iobuf, IO_ITEM_HEADER ih, int *array)
	Begin reading data for one array of telescopes/detectors. More...

int	begin_write_tel_array (IO_BUFFER iobuf, IO_ITEM_HEADER ih, int array)
	Begin writing data for one array of telescopes/detectors. More...

int	clear_shower_extra_parameters (ShowerExtraParam *ep)
	Similar to init_shower_extra_parameters() but without any attempts to re-allocate or resize buffers. More...

int	end_read_tel_array (IO_BUFFER iobuf, IO_ITEM_HEADER ih)
	End reading data for one array of telescopes/detectors. More...

int	end_write_tel_array (IO_BUFFER iobuf, IO_ITEM_HEADER ih)
	End writing data for one array of telescopes/detectors. More...

int	get_corsika_atm_params (double hlay, double aatm, double batm, double catm, double *datm)

ShowerExtraParam *	get_shower_extra_parameters (void)

int	init_shower_extra_parameters (ShowerExtraParam *ep, size_t ni_max, size_t nf_max)
	Initialize, resize, clear shower extra parameters. More...

int	print_atmprof (IO_BUFFER *iobuf)
	Print the atmospheric profile table as used in CORSIKA. More...

int	print_camera_layout (IO_BUFFER *iobuf)
	Print the layout (pixel positions) of a camera used for converting from photons to photo-electrons in a pixel. More...

int	print_photo_electrons (IO_BUFFER *iobuf)
	List the the photoelectrons registered in a Cherenkov telescope camera. More...

int	print_shower_extra_parameters (IO_BUFFER *iobuf)

int	print_shower_longitudinal (IO_BUFFER *iobuf)
	Print CORSIKA shower longitudinal distributions. More...

int	print_tel_block (IO_BUFFER *iobuf)
	Print a CORSIKA header/trailer block of any type (see mc_tel.h) More...

int	print_tel_offset (IO_BUFFER *iobuf)
	Print offsets and weights of randomly scattered arrays with respect to shower core. More...

int	print_tel_photons (IO_BUFFER *iobuf)

int	print_tel_pos (IO_BUFFER *iobuf)
	Print positions of telescopes/detectors within a system or array. More...

int	read_atmprof (IO_BUFFER iobuf, AtmProf atmprof)
	Read the atmospheric profile table as used in CORSIKA. More...

int	read_camera_layout (IO_BUFFER iobuf, int max_pixels, int itel, int type, int pixels, double xp, double yp)
	Read the layout (pixel positions) of a camera used for converting from photons to photo-electrons in a pixel. More...

int	read_input_lines (IO_BUFFER iobuf, struct linked_string list)
	Read a block with several character strings (normally containing the text of the CORSIKA inputs file) into a linked list. More...

int	read_photo_electrons (IO_BUFFER iobuf, int max_pixel, int max_pe, int array, int tel, int npe, int pixels, int flags, int pe_counts, int tstart, double t, double a, int *photon_counts)
	Read the photoelectrons registered in a Cherenkov telescope camera. More...

int	read_shower_extra_parameters (IO_BUFFER iobuf, ShowerExtraParam ep)

int	read_shower_longitudinal (IO_BUFFER iobuf, int event, int type, double data, int ndim, int np, int nthick, double *thickstep, int max_np)
	Read CORSIKA shower longitudinal distributions. More...

int	read_tel_array_end (IO_BUFFER iobuf, IO_ITEM_HEADER ih, int *array)
	End reading data for one array of telescopes/detectors. More...

int	read_tel_array_head (IO_BUFFER iobuf, IO_ITEM_HEADER ih, int *array)
	Begin reading data for one array of telescopes/detectors. More...

int	read_tel_block (IO_BUFFER iobuf, int type, real data, int maxlen)
	Read a CORSIKA header/trailer block of given type (see mc_tel.h) More...

int	read_tel_offset (IO_BUFFER iobuf, int max_array, int narray, double toff, double xoff, double *yoff)
	Read offsets of randomly scattered arrays with respect to shower core. More...

int	read_tel_offset_w (IO_BUFFER iobuf, int max_array, int narray, double toff, double xoff, double yoff, double weight)
	Read offsets and weights of randomly scattered arrays with respect to shower core. More...

int	read_tel_photons (IO_BUFFER iobuf, int max_bunches, int array, int tel, double photons, struct bunch bunches, int nbunches)
	Read bunches of Cherenkov photons for one telescope/detector. More...

int	read_tel_pos (IO_BUFFER iobuf, int max_tel, int ntel, double x, double y, double z, double r)
	Read positions of telescopes/detectors within a system or array. More...

void	remember_corsika_atm_params (float hlay, float aatm, float batm, float catm)

int	write_atmprof (IO_BUFFER iobuf, AtmProf atmprof)
	Write the atmospheric profile table as used in CORSIKA with ATMEXT option and set up with 'ATMOSPHERE <n> <fref>' or 'IACT ATMOFILE <name>' data cards. More...

int	write_camera_layout (IO_BUFFER iobuf, int itel, int type, int pixels, double xp, double *yp)
	Write the layout (pixel positions) of a camera used for converting from photons to photo-electrons in a pixel. More...

int	write_input_lines (IO_BUFFER iobuf, struct linked_string list)
	Write a linked list of character strings (normally containing the text of the CORSIKA inputs file) as a dedicated block. More...

int	write_photo_electrons (IO_BUFFER iobuf, int array, int tel, int npe, int pixels, int flags, int pe_counts, int tstart, double t, double a, int photon_counts)
	Write the photo-electrons registered in a Cherenkov telescope camera. More...

int	write_shower_extra_parameters (IO_BUFFER iobuf, ShowerExtraParam ep)

int	write_shower_longitudinal (IO_BUFFER iobuf, int event, int type, double data, int ndim, int np, int nthick, double thickstep)
	Write CORSIKA shower longitudinal distributions. More...

int	write_tel_array_end (IO_BUFFER iobuf, IO_ITEM_HEADER ih, int array)
	End writing data for one array of telescopes/detectors. More...

int	write_tel_array_head (IO_BUFFER iobuf, IO_ITEM_HEADER ih, int array)
	Begin writing data for one array of telescopes/detectors. More...

int	write_tel_block (IO_BUFFER iobuf, int type, int num, real data, int len)
	Write a CORSIKA block as given type number (see mc_tel.h). More...

int	write_tel_compact_photons (IO_BUFFER iobuf, int array, int tel, double photons, struct compact_bunch cbunches, int nbunches, int ext_bunches, char *ext_fname)
	Write all the photon bunches for one telescope to an I/O buffer. More...

int	write_tel_offset (IO_BUFFER iobuf, int narray, double toff, double xoff, double *yoff)
	Write offsets of randomly scattered arrays with respect to shower core. More...

int	write_tel_offset_w (IO_BUFFER iobuf, int narray, double toff, double xoff, double yoff, double weight)
	Write offsets and weights of randomly scattered arrays with respect to shower core. More...

int	write_tel_photons (IO_BUFFER iobuf, int array, int tel, double photons, struct bunch bunches, int nbunches, int ext_bunches, char *ext_fname)
	Write all the photon bunches for one telescope to an I/O buffer. More...

int	write_tel_pos (IO_BUFFER iobuf, int ntel, double x, double y, double z, double *r)
	Write positions of telescopes/detectors within a system or array. More...

Detailed Description

This file contains definitions of data structures and of function prototypes as needed for the Cherenkov light extraction interfaced to the modified CORSIKA code.

Author: Konrad Bernloehr

Date

1997 to 2019

CVS $Date: 2019/07/13 18:27:56 $

Version

CVS $Revision: 1.20 $

Function Documentation

◆ begin_read_tel_array()

int begin_read_tel_array	(	IO_BUFFER *	iobuf,
		IO_ITEM_HEADER *	ih,
		int *	array
	)

Note: this function does not finish reading from the I/O block but after reading of the photons a call to end_read_tel_array() is needed.

Parameters

iobuf	– I/O buffer descriptor
ih	– I/O item header (for item opened here)
array	– Number of array

Returns: 0 (o.k.), -1, -2, -3 (error, as usual in eventio)

◆ begin_write_tel_array()

int begin_write_tel_array	(	IO_BUFFER *	iobuf,
		IO_ITEM_HEADER *	ih,
		int	array
	)

Note: this function does not finish writing to the I/O block but after writing of the photons a call to end_write_tel_array() is needed.

Parameters

iobuf	I/O buffer descriptor
ih	I/O item header (for item opened here)
array	Number of array

Returns: 0 (o.k.), -1, -2, -3 (error, as usual in eventio)

◆ clear_shower_extra_parameters()

int clear_shower_extra_parameters ( ShowerExtraParam * ep )

Just clear contents.

Parameters

ep	Pointer to parameter block. A NULL value indicates that the static block is meant.

◆ end_read_tel_array()

int end_read_tel_array	(	IO_BUFFER *	iobuf,
		IO_ITEM_HEADER *	ih
	)

Parameters

iobuf	I/O buffer descriptor
ih	I/O item header (as opened in begin_write_tel_array() )

Returns: 0 (o.k.), -1, -2, -3 (error, as usual in eventio)

◆ end_write_tel_array()

int end_write_tel_array	(	IO_BUFFER *	iobuf,
		IO_ITEM_HEADER *	ih
	)

Parameters

iobuf	I/O buffer descriptor
ih	I/O item header (as opened in begin_write_tel_array() )

Returns: 0 (o.k.), -1, -2, -3 (error, as usual in eventio)

◆ init_shower_extra_parameters()

int init_shower_extra_parameters	(	ShowerExtraParam *	ep,
		size_t	ni_max,
		size_t	nf_max
	)

Parameters

ep	Pointer to parameter block. A NULL value indicates that the static block is meant.
ni_max	The number of integer parameters to be used.
nf_max	The number of float parameters to be used.

◆ print_atmprof()

int print_atmprof ( IO_BUFFER * iobuf )

Parameters

iobuf I/O buffer descriptor

Returns: 0 (o.k.), -1, -2, -3 (error, as usual in eventio)

◆ print_camera_layout()

int print_camera_layout ( IO_BUFFER * iobuf )

Parameters

iobuf I/O buffer descriptor

Returns: 0 (o.k.), -1, -2, -3 (error, as usual in eventio)

◆ print_photo_electrons()

int print_photo_electrons ( IO_BUFFER * iobuf )

Parameters

iobuf I/O buffer descriptor

Returns: 0 (o.k.), -1, -2, -3 (error, as usual in eventio)

◆ print_shower_longitudinal()

int print_shower_longitudinal ( IO_BUFFER * iobuf )

Parameters

iobuf I/O buffer descriptor

Returns: 0 (o.k.), -1, -2, -3 (error, as usual in eventio)

◆ print_tel_block()

int print_tel_block ( IO_BUFFER * iobuf )

Parameters

iobuf I/O buffer descriptor

Returns: 0 (o.k.), -1, -2, -3 (error, as usual in eventio)

◆ print_tel_offset()

int print_tel_offset ( IO_BUFFER * iobuf )

Parameters

iobuf I/O buffer descriptor

Returns: 0 (o.k.), -1, -2, -3 (error, as usual in eventio)

◆ print_tel_pos()

int print_tel_pos ( IO_BUFFER * iobuf )

Parameters

iobuf I/O buffer descriptor

Returns: 0 (o.k.), -1, -2, -3 (error, as usual in eventio)

◆ read_atmprof()

int read_atmprof	(	IO_BUFFER *	iobuf,
		AtmProf *	atmprof
	)

Parameters

iobuf	I/O buffer descriptor
atmprof	Address of struct with relevant parts of atmospheric profile table

Returns: 0 (o.k.), -1, -2, -3 (error, as usual in eventio)

◆ read_camera_layout()

int read_camera_layout	(	IO_BUFFER *	iobuf,
		int	max_pixels,
		int *	itel,
		int *	type,
		int *	pixels,
		double *	xp,
		double *	yp
	)

Parameters

iobuf	I/O buffer descriptor
max_pixels	The maximum number of pixels that can be stored in xp, yp.
itel	telescope number
type	camera type (hex/square)
pixels	number of pixels
xp	X positions of pixels
yp	Y position of pixels

Returns: 0 (o.k.), -1, -2, -3 (error, as usual in eventio)

◆ read_input_lines()

int read_input_lines	(	IO_BUFFER *	iobuf,
		struct linked_string *	list
	)

Parameters

iobuf	I/O buffer descriptor
list	starting point of linked list (on first call this should be a link to an empty list, i.e. the first element has text=NULL and next=NULL; on additional calls the new lines will be appended.)

Returns: 0 (o.k.), -1, -2, -3 (error, as usual in eventio)

◆ read_photo_electrons()

int read_photo_electrons	(	IO_BUFFER *	iobuf,
		int	max_pixels,
		int	max_pe,
		int *	array,
		int *	tel,
		int *	npe,
		int *	pixels,
		int *	flags,
		int *	pe_counts,
		int *	tstart,
		double *	t,
		double *	a,
		int *	photon_counts
	)

Parameters

iobuf	I/O buffer descriptor
max_pixels	Maximum number of pixels which can be treated
max_pe	Maximum number of photo-electrons
array	Array number
tel	Telescope number
npe	The total number of photo-electrons read.
pixels	Number of pixels read.
flags	Bit 0: amplitudes available, bit 1: includes NSB p.e.
pe_counts	Numbers of photo-electrons in each pixel
tstart	Offsets in 't' at which data for each pixel starts
t	Time of arrival of photons at the camera.
a	Amplitudes of p.e. signals [mean p.e.] (optional, may be NULL).
photon_counts	Optional number of photons arriving at a pixel.

Returns: 0 (o.k.), -1, -2, -3 (error, as usual in eventio)

◆ read_shower_longitudinal()

int read_shower_longitudinal	(	IO_BUFFER *	iobuf,
		int *	event,
		int *	type,
		double *	data,
		int	ndim,
		int *	np,
		int *	nthick,
		double *	thickstep,
		int	max_np
	)

See tellng_() in iact.c for more detailed parameter description.

Parameters

iobuf	I/O buffer descriptor
event	return event number
type	return 1 = particle numbers, 2 = energy, 3 = energy deposits
data	return set of (usually 9) distributions
ndim	maximum number of entries per distribution
np	return number of distributions (usually 9)
nthick	return number of entries actually filled per distribution (is 1 if called without LONGI being enabled).
thickstep	return step size in g/cm**2
max_np	maximum number of distributions for which we have space.

Returns: 0 (o.k.), -1, -2, -3 (error, as usual in eventio)

◆ read_tel_array_end()

int read_tel_array_end	(	IO_BUFFER *	iobuf,
		IO_ITEM_HEADER *	ih,
		int *	array
	)

Parameters

iobuf	I/O buffer descriptor
ih	I/O item header (as opened in begin_write_tel_array() )

Returns: 0 (o.k.), -1, -2, -3 (error, as usual in eventio)

◆ read_tel_array_head()

int read_tel_array_head	(	IO_BUFFER *	iobuf,
		IO_ITEM_HEADER *	ih,
		int *	array
	)

Note: this function does not finish reading from the I/O block but after reading of the photons a call to end_read_tel_array() is needed.

Parameters

iobuf	– I/O buffer descriptor
ih	– I/O item header (for item opened here)
array	– Number of array

Returns: 0 (o.k.), -1, -2, -3 (error, as usual in eventio)

◆ read_tel_block()

int read_tel_block	(	IO_BUFFER *	iobuf,
		int	type,
		real *	data,
		int	maxlen
	)

Parameters

iobuf	I/O buffer descriptor
type	block type (see mc_tel.h)
data	area for data to be read
maxlen	maximum number of elements to be read

Returns: 0 (o.k.), -1, -2, -3 (error, as usual in eventio)

◆ read_tel_offset()

int read_tel_offset	(	IO_BUFFER *	iobuf,
		int	max_array,
		int *	narray,
		double *	toff,
		double *	xoff,
		double *	yoff
	)

Parameters

iobuf	I/O buffer descriptor
max_array	Maximum number of arrays that can be treated
narray	Number of arrays of telescopes/detectors
toff	Time offset (ns, from first interaction to ground)
xoff	X offsets of arrays
yoff	Y offsets of arrays

Returns: 0 (o.k.), -1, -2, -3 (error, as usual in eventio)

◆ read_tel_offset_w()

int read_tel_offset_w	(	IO_BUFFER *	iobuf,
		int	max_array,
		int *	narray,
		double *	toff,
		double *	xoff,
		double *	yoff,
		double *	weight
	)

Parameters

iobuf	I/O buffer descriptor
max_array	Maximum number of arrays that can be treated
narray	Number of arrays of telescopes/detectors
toff	Time offset (ns, from first interaction to ground)
xoff	X offsets of arrays
yoff	Y offsets of arrays
weight	Area weight for uniform or importance sampled core offset. For old version data (uniformly sampled), 0.0 is returned.

Returns: 0 (o.k.), -1, -2, -3 (error, as usual in eventio)

◆ read_tel_photons()

int read_tel_photons	(	IO_BUFFER *	iobuf,
		int	max_bunches,
		int *	array,
		int *	tel,
		double *	photons,
		struct bunch *	bunches,
		int *	nbunches
	)

The data format may be either the more or less compact one.

Parameters

iobuf	I/O buffer descriptor
max_bunches	maximum number of bunches that can be treated
array	array number
tel	telescope number
photons	sum of photons (and fractions) in this device
bunches	list of photon bunches
nbunches	number of elements in bunch list

Returns: 0 (o.k.), -1, -2, -3 (error, as usual in eventio)

◆ read_tel_pos()

int read_tel_pos	(	IO_BUFFER *	iobuf,
		int	max_tel,
		int *	ntel,
		double *	x,
		double *	y,
		double *	z,
		double *	r
	)

Parameters

iobuf	I/O buffer descriptor
max_tel	maximum number of telescopes allowed
ntel	number of telescopes/detectors
x	X positions
y	Y positions
z	Z positions
r	radius of spheres including the whole devices

Returns: 0 (o.k.), -1, -2, -3 (error, as usual in eventio)

◆ write_atmprof()

int write_atmprof	(	IO_BUFFER *	iobuf,
		AtmProf *	atmprof
	)

Parameters

iobuf	I/O buffer descriptor
atmprof	Address of struct with relevant parts of atmospheric profile table

Returns: 0 (o.k.), -1, -2, -3 (error, as usual in eventio)

◆ write_camera_layout()

int write_camera_layout	(	IO_BUFFER *	iobuf,
		int	itel,
		int	type,
		int	pixels,
		double *	xp,
		double *	yp
	)

Parameters

iobuf	I/O buffer descriptor
itel	telescope number
type	camera type (hex/square)
pixels	number of pixels
xp	X positions of pixels
yp	Y position of pixels

Returns: 0 (o.k.), -1, -2, -3 (error, as usual in eventio)

◆ write_input_lines()

int write_input_lines	(	IO_BUFFER *	iobuf,
		struct linked_string *	list
	)

Parameters

iobuf	I/O buffer descriptor
list	starting point of linked list

Returns: 0 (o.k.), -1, -2, -3 (error, as usual in eventio)

◆ write_photo_electrons()

int write_photo_electrons	(	IO_BUFFER *	iobuf,
		int	array,
		int	tel,
		int	npe,
		int	flags,
		int	pixels,
		int *	pe_counts,
		int *	tstart,
		double *	t,
		double *	a,
		int *	photon_counts
	)

Parameters

iobuf	I/O buffer descriptor
array	array number
tel	telescope number
npe	Total number of photo-electrons in the camera.
pixels	No. of pixels to be written
flags	Bit 0: save also amplitudes if available, Bit 1: p.e. list includes NSB p.e., bit 2: data also including no. of photons hitting each pixel. bit 3: photons (if any) are in wavelength range 300-550 nm.
pe_counts	Numbers of photo-electrons in each pixel
tstart	Offsets in 't' at which data for each pixel starts
t	Time of arrival of photons at the camera.
a	Amplitudes of p.e. signals [mean p.e.] (optional, may be NULL).
photon_counts	Optional number of photons arriving at a pixel (with flags bit 2 set)

Returns: 0 (o.k.), -1, -2, -3 (error, as usual in eventio)

◆ write_shower_longitudinal()

int write_shower_longitudinal	(	IO_BUFFER *	iobuf,
		int	event,
		int	type,
		double *	data,
		int	ndim,
		int	np,
		int	nthick,
		double	thickstep
	)

See tellng_() in iact.c for more detailed parameter description.

Parameters

iobuf	I/O buffer descriptor
event	event number
type	1 = particle numbers, 2 = energy, 3 = energy deposits
data	set of (usually 9) distributions
ndim	maximum number of entries per distribution
np	number of distributions (usually 9)
nthick	number of entries actually filled per distribution (is 1 if called without LONGI being enabled).
thickstep	step size in g/cm**2

Returns: 0 (o.k.), -1, -2, -3 (error, as usual in eventio)

◆ write_tel_array_end()

int write_tel_array_end	(	IO_BUFFER *	iobuf,
		IO_ITEM_HEADER *	ih,
		int	array
	)

Parameters

iobuf	I/O buffer descriptor
ih	I/O item header (as opened in begin_write_tel_array() )

Returns: 0 (o.k.), -1, -2, -3 (error, as usual in eventio)

◆ write_tel_array_head()

int write_tel_array_head	(	IO_BUFFER *	iobuf,
		IO_ITEM_HEADER *	ih,
		int	array
	)

Note: this function does not finish writing to the I/O block but after writing of the photons a call to end_write_tel_array() is needed.

Parameters

iobuf	I/O buffer descriptor
ih	I/O item header (for item opened here)
array	Number of array

Returns: 0 (o.k.), -1, -2, -3 (error, as usual in eventio)

◆ write_tel_block()

int write_tel_block	(	IO_BUFFER *	iobuf,
		int	type,
		int	num,
		real *	data,
		int	len
	)

Parameters

iobuf	I/O buffer descriptor
type	block type (see mc_tel.h)
num	Run or event number depending on type
data	Data as passed from CORSIKA
len	Number of elements to be written

Returns: 0 (OK), -1, -2, -3 (error, as usual in eventio)

◆ write_tel_compact_photons()

int write_tel_compact_photons	(	IO_BUFFER *	iobuf,
		int	array,
		int	tel,
		double	photons,
		struct compact_bunch *	cbunches,
		int	nbunches,
		int	ext_bunches,
		char *	ext_fname
	)

Usually, calls to this function for each telescope in an array should be enclosed within calls to begin_write_tel_array() and end_write_tel_array(). This routine writes the more compact format (16 bytes per bunch). The more compact format should usually be used to save memory and disk space.

Parameters

iobuf	I/O buffer descriptor
array	array number
tel	telescope number
photons	sum of photons (and fractions) in this device
cbunches	list of photon bunches
nbunches	number of elements in bunch list
ext_bunches	number of elements in external file
ext_fname	name of external (temporary) file

Returns: 0 (o.k.), -1, -2, -3 (error, as usual in eventio)

◆ write_tel_offset()

int write_tel_offset	(	IO_BUFFER *	iobuf,
		int	narray,
		double	toff,
		double *	xoff,
		double *	yoff
	)

Parameters

iobuf	I/O buffer descriptor
narray	Number of arrays of telescopes/detectors
toff	Time offset (ns, from first interaction to ground)
xoff	X offsets of arrays
yoff	Y offsets of arrays

Returns: 0 (o.k.), -1, -2, -3 (error, as usual in eventio)

◆ write_tel_offset_w()

int write_tel_offset_w	(	IO_BUFFER *	iobuf,
		int	narray,
		double	toff,
		double *	xoff,
		double *	yoff,
		double *	weight
	)

With respect to the backwards-compatible non-weights version write_tel_offset(), this version adds a weight to each offset position which should be normalized in such a way that with uniform sampling it should be the area over which showers are thrown divided by the number of array in each shower. With importance sampling the same relation should hold on average. So in either case, the average sum of weights for the different offsets in one shower equals just the area over which cores are randomized. This leaves the possibility to change the number of offsets from shower to shower.

Parameters

iobuf	I/O buffer descriptor
narray	Number of arrays of telescopes/detectors
toff	Time offset (ns, from first interaction to ground)
xoff	X offsets of arrays
yoff	Y offsets of arrays
weight	Area weight for uniform or importance sampled core offset.

Returns: 0 (o.k.), -1, -2, -3 (error, as usual in eventio)

◆ write_tel_photons()

int write_tel_photons	(	IO_BUFFER *	iobuf,
		int	array,
		int	tel,
		double	photons,
		struct bunch *	bunches,
		int	nbunches,
		int	ext_bunches,
		char *	ext_fname
	)

Usually, calls to this function for each telescope in an array should be enclosed within calls to begin_write_tel_array() and end_write_tel_array(). This routine writes the less compact format (32 bytes per bunch).

Parameters

iobuf	I/O buffer descriptor
array	array number
tel	telescope number
photons	sum of photons (and fractions) in this device
bunches	list of photon bunches
nbunches	number of elements in bunch list
ext_bunches	number of elements in external file
ext_fname	name of external (temporary) file

Returns: 0 (o.k.), -1, -2, -3 (error, as usual in eventio)

◆ write_tel_pos()

int write_tel_pos	(	IO_BUFFER *	iobuf,
		int	ntel,
		double *	x,
		double *	y,
		double *	z,
		double *	r
	)

Parameters

iobuf	I/O buffer descriptor
ntel	number of telescopes/detectors
x	X positions
y	Y positions
z	Z positions
r	radius of spheres including the whole devices

Returns: 0 (o.k.), -1, -2, -3 (error, as usual in eventio)

Data Structures

Macros

Typedefs

Functions

Detailed Description

Function Documentation

◆ begin_read_tel_array()

◆ begin_write_tel_array()

◆ clear_shower_extra_parameters()

◆ end_read_tel_array()

◆ end_write_tel_array()

◆ init_shower_extra_parameters()

◆ print_atmprof()

◆ print_camera_layout()

◆ print_photo_electrons()

◆ print_shower_longitudinal()

◆ print_tel_block()

◆ print_tel_offset()

◆ print_tel_pos()

◆ read_atmprof()

◆ read_camera_layout()

◆ read_input_lines()

◆ read_photo_electrons()

◆ read_shower_longitudinal()

◆ read_tel_array_end()

◆ read_tel_array_head()

◆ read_tel_block()

◆ read_tel_offset()

◆ read_tel_offset_w()

◆ read_tel_photons()

◆ read_tel_pos()

◆ write_atmprof()

◆ write_camera_layout()

◆ write_input_lines()

◆ write_photo_electrons()

◆ write_shower_longitudinal()

◆ write_tel_array_end()

◆ write_tel_array_head()

◆ write_tel_block()

◆ write_tel_compact_photons()

◆ write_tel_offset()

◆ write_tel_offset_w()

◆ write_tel_photons()

◆ write_tel_pos()
