CORSIKA interface for Imaging Atmospheric Cherenkov Telescopes etc. More...

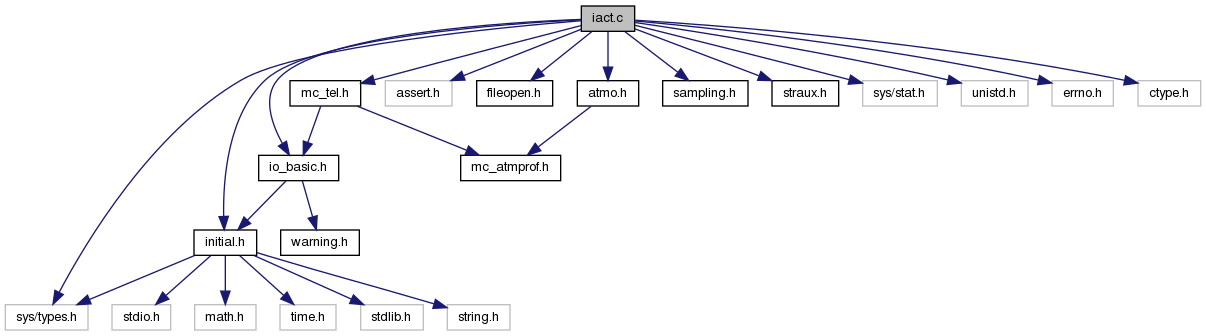

#include "initial.h"#include "io_basic.h"#include "mc_tel.h"#include <assert.h>#include "fileopen.h"#include "atmo.h"#include "sampling.h"#include "straux.h"#include <sys/types.h>#include <sys/stat.h>#include <unistd.h>#include <errno.h>#include <ctype.h>
Data Structures | |
| struct | detstruct |
| A structure describing a detector and linking its photons bunches to it. More... | |
| struct | gridstruct |
Macros | |
| #define | EXTERNAL_STORAGE 1 |
| Enable external temporary bunch storage. | |
| #define | EXTRA_MEM 0 |
| #define | EXTRA_MEM_1 EXTRA_MEM |
| #define | EXTRA_MEM_10 EXTRA_MEM |
| #define | EXTRA_MEM_11 EXTRA_MEM |
| #define | EXTRA_MEM_12 EXTRA_MEM |
| #define | EXTRA_MEM_2 EXTRA_MEM |
| #define | EXTRA_MEM_3 EXTRA_MEM |
| #define | EXTRA_MEM_4 EXTRA_MEM |
| #define | EXTRA_MEM_5 EXTRA_MEM |
| #define | EXTRA_MEM_6 EXTRA_MEM |
| #define | EXTRA_MEM_7 EXTRA_MEM |
| #define | EXTRA_MEM_8 EXTRA_MEM |
| #define | EXTRA_MEM_9 EXTRA_MEM |
| #define | GRID_SIZE 1000 |
| unit: cm | |
| #define | HAVE_EVENTIO_FUNCTIONS 1 |
| #define | IACT_ATMO_VERSION "1.63 (2020-11-23)" |
| #define | INTERNAL_LIMIT 100000 |
| Start external storage after so many bunches. | |
| #define | M_PI 3.14159265358979323846 /* pi */ |
| #define | max(a, b) ((a)>(b)?(a):(b)) |
| #define | MAX_ARRAY_SIZE 1000 /* Use the same limit as in CORSIKA itself. */ |
| Maximum number of telescopes (or other detectors) per array. | |
| #define | MAX_BUNCHES 5000000 |
| #define | MAX_CLASS 1 |
| #define | MAX_IO_BUFFER 200000000 |
| #define | min(a, b) ((a)<(b)?(a):(b)) |
| #define | NBUNCH 5000 |
| Memory allocation step size for bunches. | |
| #define | PIPE_OUTPUT 1 |
| #define | PRMPAR_SIZE 17 |
| #define | square(x) ((x)*(x)) |
| #define | UNKNOWN_LONG_DIST 1 |
Typedefs | |
| typedef float | cors_real_t |
| Type for CORSIKA floating point numbers remaining REAL*4. | |
Functions | |
| static int | compact_photon_hit (struct detstruct *det, double x, double y, double cx, double cy, double sx, double sy, double photons, double ctime, double zem, double lambda) |
| Store a photon bunch for a given telescope in compact format. More... | |
| static void | cross_prod (double *v1, double *v2, double *v3) |
| Cross (outer) product of two 3-D vectors v1, v2 into 3-D vector v3. | |
| static int | expand_env (char *fname, size_t maxlen) |
| Expanding environment variables ourselves rather than passing that on a shell later, so that we can still check characters after expansion. | |
| void | extprim_setup (const char *text1) |
| Function for activating and setting up user-defined (external to CORSIKA) control over types, energy spectra, and angular distribution of primaries. More... | |
| void | extprm5_ (cors_dbl_t *type, cors_dbl_t *eprim, double *thetap, double *phip, double *ar) |
| Alternate call for extprm_() with explicit array rotation angle passed in function call. More... | |
| void | extprm_ (cors_dbl_t *type, cors_dbl_t *eprim, double *thetap, double *phip) |
| Function for external shower-by-shower setting of primary type, energy, and direction. More... | |
| void | get_iact_stats (long *sb, double *ab, double *ap) |
| void | get_impact_offset (cors_real_t evth[273], cors_dbl_t prmpar[PRMPAR_SIZE]) |
| Approximate impact offset of primary due to geomagnetic field. More... | |
| static void | get_mass_charge (int type, double *mass, double *charge) |
| double | heigh_ (double *thickness) |
| The CORSIKA built-in function for the height as a function of overburden. More... | |
| static void | iact_param (const char *text0) |
| Processing of IACT module specific parameters in Corsika input. More... | |
| double | iact_rndm (int dummy) |
| Use a more unique function name if we want to use the same random generator from CORSIKA (sequence 4) also in other parts linked with the IACT module. More... | |
| static int | in_detector (struct detstruct *det, double x, double y, double sx, double sy) |
| Check if a photon bunch hits a particular telescope volume. More... | |
| static void | ioerrorcheck () |
| static int | is_off (char *word) |
| static int | is_on (char *word) |
| static int | Nint_f (double x) |
| Nearest integer function. More... | |
| static double | norm3 (double *v) |
| Norm of a 3-D vector. | |
| static void | norm_vec (double *v) |
| Normalize a 3-D vector. | |
| static int | photon_hit (struct detstruct *det, double x, double y, double cx, double cy, double sx, double sy, double photons, double ctime, double zem, double lambda) |
| Store a photon bunch for a given telescope in long format. More... | |
| double | refidx_ (double *height) |
| Index of refraction as a function of altitude [cm]. More... | |
| double | rhof_ (double *height) |
| The CORSIKA built-in density lookup function. More... | |
| void | rmmard_ (double *, int *, int *) |
| static double | rndm (int dummy) |
| Random number interface using sequence 4 of CORSIKA. More... | |
| void | sample_offset (const char *sampling_fname, double core_range, double theta, double phi, double thetaref, double phiref, double offax, double E, int primary, double *xoff, double *yoff, double *sampling_area) |
| Get uniformly sampled or importance sampled offset of array with respect to core, in the plane perpendicular to the shower axis. More... | |
| static int | set_random_systems (double theta, double phi, double thetaref, double phiref, double offax, double E, int primary, int volflag) |
| Randomly scatter each array of detectors in given area. More... | |
| void | set_system_displacement (double dx, double dy) |
| Report displaced core positions in event header. More... | |
| void | telasu_ (int *n, cors_dbl_t *dx, cors_dbl_t *dy) |
| Setup how many times each shower is used. More... | |
| void | telend_ (cors_real_t evte[273]) |
| End of event. More... | |
| void | televt_ (cors_real_t evth[273], cors_dbl_t prmpar[PRMPAR_SIZE]) |
| Start of new event. More... | |
| void | telfil_ (const char *name0) |
| Define the output file for photon bunches hitting the telescopes. More... | |
| void | telinf_ (int *itel, double *x, double *y, double *z, double *r, int *exists) |
| Return information about configured telescopes back to CORSIKA. More... | |
| void | tellng_ (int *type, double *data, int *ndim, int *np, int *nthick, double *thickstep) |
| Write CORSIKA 'longitudinal' (vertical) distributions. More... | |
| void | tellni_ (const char *line, int *llength) |
| Keep a record of CORSIKA input lines. More... | |
| int | telout_ (cors_dbl_t *bsize, cors_dbl_t *wt, cors_dbl_t *px, cors_dbl_t *py, cors_dbl_t *pu, cors_dbl_t *pv, cors_dbl_t *ctime, cors_dbl_t *zem, cors_dbl_t *lambda) |
| Check if a photon bunch hits one or more simulated detector volumes. More... | |
| void | telrne_ (cors_real_t rune[273]) |
| Write run end block to the output file. More... | |
| void | telrnh_ (cors_real_t runh[273]) |
| Save aparameters from CORSIKA run header. More... | |
| void | telset_ (cors_dbl_t *x, cors_dbl_t *y, cors_dbl_t *z, cors_dbl_t *r) |
| Add another telescope to the system (array) of telescopes. More... | |
| void | telshw_ () |
| Show what telescopes have actually been set up. More... | |
| void | telsmp_ (const char *name) |
Variables | |
| static double | airlightspeed = 29.9792458/1.0002256 |
| Speed of light used to correct for the delay between observation level. More... | |
| static double | all_bunches |
| static double | all_bunches_run |
| static double | all_photons |
| static double | all_photons_run |
| static double | arr_cosang = 1.0 |
| static double | arr_sinang = 0.0 |
| static double | arrang = 0. |
| Array rotation angle (in radians, like ARRANR in corsika.F) | |
| static int | arrang_known = 0 |
| static double | atmo_top |
| Height of top of atmosphere [cm]. | |
| static double | Bfield [3] |
| Magnetic field vector in detector coordinate system (with Bz positive if upwards) | |
| static double | bxplane [3] |
| static double | byplane [3] |
| Spanning vectors of shower plane such that projection of B field is in bxplane direction. | |
| static double | core_range |
| The maximum core offset of array centres in circular distribution. More... | |
| static double | core_range1 |
| The maximum core offsets in x,y for rectangular distribution. More... | |
| static double | core_range2 |
| int | cors_4dig_def = 6900 |
| double | cors_ver_def = 6.900 |
| static struct linked_string | corsika_inputs = { corsika_inputs_head, NULL } |
| static char | corsika_inputs_head [80] |
| int | corsika_version = (CORSIKA_VERSION) |
| The CORSIKA version actually running. More... | |
| static int | count_print_evt = 0 |
| static int | count_print_tel = 0 |
| The number of events for which full output is 'printed' can be limited. More... | |
| static int | det_in_class [MAX_CLASS] |
| static struct detstruct ** | detector |
| static double | dmax = 0. |
| Max. More... | |
| static int | do_print |
| static double | energy |
| static int | event_number |
| static double | event_weight |
| Event weight (default: 1.0). More... | |
| FILE * | extprim_file = NULL |
| char * | extprim_fname = NULL |
| static double | first_int |
| static struct gridstruct * | grid |
| static int | grid_elements |
| static int | grid_nx |
| static int | grid_ny |
| static double | grid_x_high |
| static double | grid_x_low |
| static double | grid_y_high |
| static double | grid_y_low |
| static int | impact_correction = 1 |
| Correct impact position if non-zero. More... | |
| static double | impact_offset [2] |
| Offset of impact position of charged primaries. | |
| static IO_BUFFER * | iobuf |
| static double | lambda1 |
| static double | lambda2 |
| static long | max_bunches = MAX_BUNCHES |
| static int | max_internal_bunches = INTERNAL_LIMIT |
| The largest number of photon bunches kept in main memory before attempting to flush them to temporary files on disk. More... | |
| static size_t | max_io_buffer = MAX_IO_BUFFER |
| The largest block size in the output data, which must hold all photons bunches of one array. More... | |
| static int | max_print_evt = 100 |
| static int | max_print_tel = 10 |
| static size_t | missing_evth = 0 |
| Count events where there is no event header preceding event end. More... | |
| static int | narray |
| static int * | ndet |
| static int | nevents |
| static int | nrun |
| static int | nsys = 1 |
| Number of arrays. | |
| static int | ntel = 0 |
| Number of telescopes set up. | |
| static double | obs_dx |
| static double | obs_dy |
| static double | obs_height |
| static double | off_axis |
| static char * | output_fname = NULL |
| The name of the output file for eventio format data. More... | |
| static char * | output_options = NULL |
| static double | phi_central |
| static double | phi_prim |
| static double | pprim [3] |
| Momentum vector of primary particle. | |
| static int | primary |
| static double | raise_tel |
| Non-zero if any telescope has negative z. | |
| static double | rmax = 0. |
| Max. More... | |
| static double | rtel [MAX_ARRAY_SIZE] |
| static char * | sampling_fname |
| The name of the file providing parameters for importance sampling. More... | |
| static int | skip_off2 = 1 |
| static int | skip_print = 1 |
| static int | skip_print2 = 100 |
| static long | stored_bunches |
| static int | tel_individual = 0 |
| static size_t | tel_split_threshold = 10000000 |
| Bunches in the whole array for auto-splitting. More... | |
| static int | televt_done |
| static double | theta_central |
| The central value of the allowed ranges in theta and phi. More... | |
| static double | theta_prim |
| static double | toffset |
| static int | use_compact_format = 1 |
| static double | ush |
| static double | ushc |
| static double | vsh |
| static double | vshc |
| static double * | weight |
| int | with_extprim = 0 |
| static double | wsh |
| static double | wshc |
| static double | xdisplaced = 0. |
| Extra reported core offset displacement (not used with CORSIKA) | |
| static double * | xoffset |
| static double | xtel [MAX_ARRAY_SIZE] |
| Position and size definition of fiducial spheres. More... | |
| static double | ydisplaced = 0. |
| static double * | yoffset |
| static double | ytel [MAX_ARRAY_SIZE] |
| static double | ztel [MAX_ARRAY_SIZE] |
Detailed Description
- Date
CVS $Date: 2020/11/24 11:27:19 $
-
CVS $Revision: 1.133 $
- Copyright
- LGPL2.1+
Version 1.2.49 (for IACT/ATMO package version 1.63)
This file implements a CORSIKA interface for the simulation of (3-D) arrays of Cherenkov telescopes. A whole array may be simulated in multiple instances with random offsets of each instance. For full use of this software additional files are required which are available now on request from Konrad Bernloehr (e-mail: Konrad.Bernloehr@mpi-hd.mpg.de). These additional files should be included in the same add-on package to CORSIKA which includes this file. A fallback mechanism is included to use the normal CORSIKA output of Cherenkov photon bunches instead of the dedicated output functions from the unavailable files. However, this fallback mechanism has important drawbacks: information about positions of telescopes are completely lost and no photon bunches are collected in memory because the collected bunches would never be written out. For those reasons you are adviced to obtain and use the additional software.
General comments on this file:
Routines provided in this file interface to recent versions of the CORSIKA air shower simulation program (the FORTRAN implementation only for now, not CORSIKA 8). Modifications to CORSIKA have been kept as simple as possible and the existing routines for production of Cherenkov light have been largely maintained. Setup of the telescope systems to be simulated is via the usual CORSIKA input file (the syntax of which has been extended by a few additional keywords). These telescope systems can be randomly scattered several times within a given area. All treatment whether a bunch of photons hits a telescope is done by the routines in this file. Photon bunches are kept in main memory until the end of the event. This might be a limitation when simulating large showers / many telescopes / many systems of telescopes on a computer with little memory. An option to store photon bunches in a temporary file has, therefore, been included. After the end of an event in CORSIKA all photon bunches (sorted by system and telescope) are written to a data file in the 'eventio' portable data format also used for CRT and HEGRA CT data. All CORSIKA run/event header/trailer blocks are also written to this file.
This version comes with sections for conditional compilation like EXTENDED_TELOUT CORSIKA is compiled with extended interface (IACTEXT option). Information about particles on ground is stored. IACTEXT For all practical purposes a synonym to EXTENDED_TELOUT. STORE_EMITTER Store information about all particles emitting light after the photon bunch. This duplicated the amount of data. Requires the IACTEXT option to be activated. MARK_DIRECT_LIGHT The Cherenkov photons bunches from the primary particle and its leading/major fragments are marked up with a non-zero wavelength (1: direct, 2, 3: major fragments). Requires the IACTEXT option to be activated. See the ALL_WL_RANDOM configuration parameter to sim_telarray. CORSIKA_SAVES_PHOTONS CORSIKA should save photons in its own format. IACT_NO_GRID For optimization of finding detector hits in normal simulations a detector is assigned to each grid cell onto which the detector throws a 'shadow', reducing the detector intersection checks a lot. In special shower simulations (example: a 10000 m high string of telescopes) or in technical simulations (e.g. using the IACT interface for artificial light sources, without CORSIKA) this may fail and explicit intersection of each photon bunch with each detector sphere needs to be checked. NO_EXTERNAL_ATMOSPHERES CORSIKA was compiled without the ATMEXT option and we do not handle tables of atmospheric density etc. Note that these extensions may not have been tested in a long time. Use with care.
