Astrophysicists using the H.E.S.S. gamma-ray telescopes in Namibia,
measuring for the first time very high energy gamma-rays from two rather
distant quasars (active galaxies), have deduced that the Universe is more
transparent to gamma-rays than previously believed. Gamma-rays (see box), which
are produced in the most violent objects in the Universe, are absorbed in
their journey from distant objects to us if they happen to hit a photon of
"normal" background light near the visible spectrum. This fog of light in
which the Universe is bathed is a fossil record of all the light emitted in
the Universe over its lifetime, from the glare of the first stars and galaxies
up to the present time. So, using the distant quasars as a probe and studying
the effect of the fossil light on the energy distribution of the initial
gamma-rays, astrophysicists have been able to derive a limit on the maximum
amount of this light, which is remarkably lower than what previous estimates
had suggested. This result, published in the April 20 issue of Nature, has
important consequences for our understanding of galaxy formation and
evolution, and expands the horizon of the gamma-ray Universe.
Gamma rays: Gamma rays resemble normal light or X-rays, but are much more energetic. Visible light has an energy of about one electronVolt (1 eV) of energy in physicist's terms. X-rays are thousands to millions of eV. H.E.S.S. detects very-high energy gamma-ray photons with an energy of a million million eVs, or Tera-electronVolt energies (TeV). These high energy gamma rays are quite rare; even for relatively strong astrophysical sources, only about one gamma ray per month hits a square metre at the top of the Earth's atmosphere.
Quasars, active galaxies: All galaxies seem to host a supermassive black hole (up to ten thousand million times the mass of the Sun) at their centre, but in some of them it becomes "active", swallowing gas from the surroundings and launching quantities of plasma (a mixture of electrons, protons and electro-magnetic fields) at velocities very close to the velocity of light. These "relativistic outflows" form narrow jets which can extend over several hundred times the dimension of the galaxy. If the jet happens to point towards the Earth, the radiation emitted by the plasma in the jet is seen highly amplified, and in this case these objects are called "blazars". Their emission extends from radio up to TeV energies, and is very variable, both in intensity and energy distribution. The two objects detected by H.E.S.S. mentioned here are of this type.

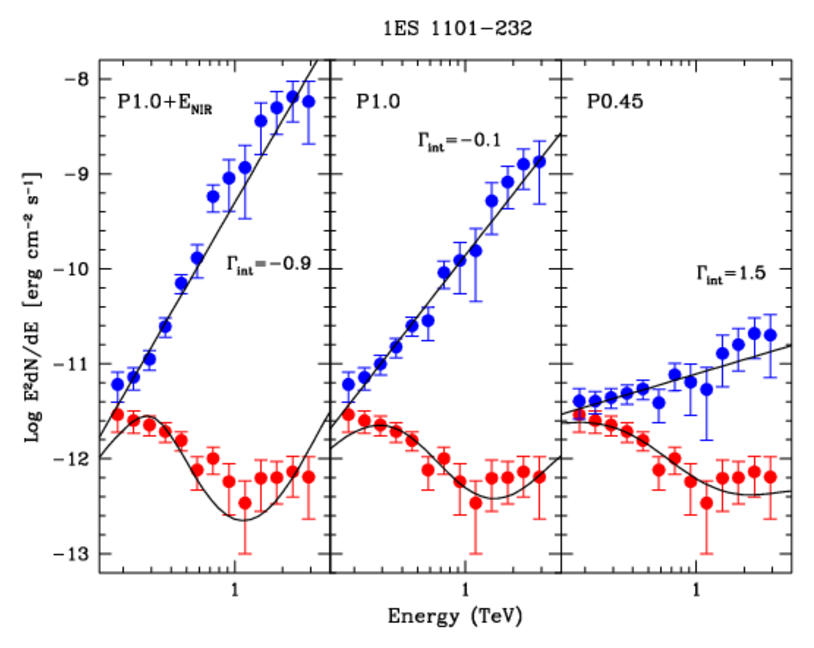

The H.E.S.S. spectrum of the blazar 1ES 1101-232. The observed distribution of energies (spectrum) of the detected gamma-rays is plotted in red. In blue is shown the deduced original distribution as emitted at the source, reconstructed supposing different levels of the diffuse background light. If the level is high (left and centre panel), the original spectrum is dramatically different from the typical distribution expected from such objects, and cannot be easily explained as an intrinsic feature. With a low background light level (right panel), the original spectrum becomes compatible with the normal characteristics of this type of quasar. (larger image) (PDF version)
Contacts:
Dr. Luigi Costamante &
Dr. Felix Aharonian
Max-Planck-Institut fuer Kernphysik
Saupfercheckweg 1
69117 Heidelberg, GERMANY
Tel +49 6221 516470 &
+49 6221 516485
Dr. Michael Punch
AstroParticule et Cosmologie
Collège de France
11 place Marcelin Berthelot
75231 Paris Cedex 05, FRANCE
Tel +33 1 44271545
Prof. Stefan Wagner
ZAH, Landessternwarte
Königstuhl
D-69117 Heidelberg, GERMANY
Tel +49 6221 541 712
Experiment
homepage
Project Chronology
The H.E.S.S. Telescopes
H.E.S.S. Brochure on H.E.S.S.
(Full Resolution ppt 15 MB)

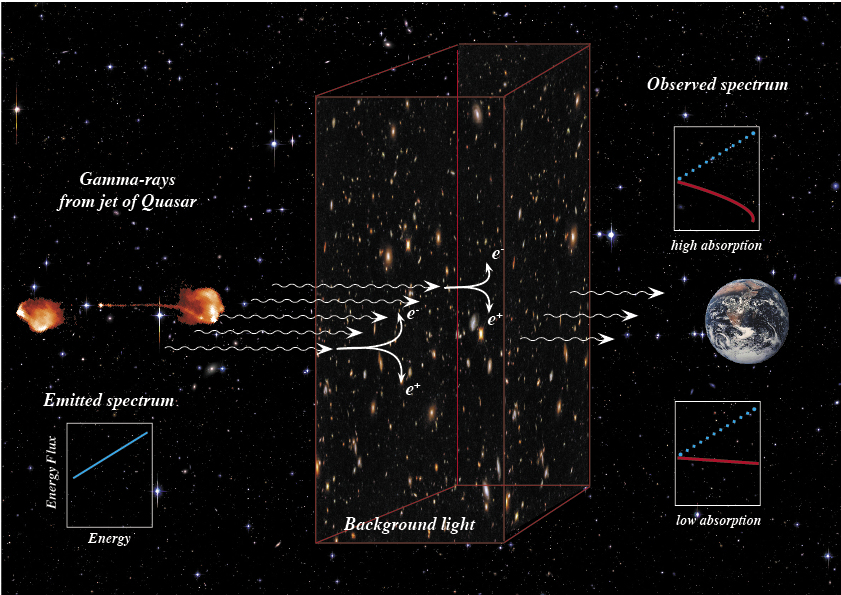

A cartoon of the effects of the diffuse extragalactic background light (EBL) on the gamma-ray emission from a distant quasar, before reaching the Earth. The gamma-rays are partly absorbed by colliding with the EBL photons produced by all the stars and galaxies in the Universe. If the density of EBL photons is high (upper graph), absorption is high and the highest energy gamma-rays are lost. So the distribution of measured energies (spectrum) is strongly changed. If instead the density is low (lower graph), absorption is less and the spectrum is not changed as much. (larger image) (PDF version)
The collaboration: The High Energy Stereoscopic System
(H.E.S.S.) team consists of scientists from Germany, France, the UK, the Czech
Republic, Ireland, Armenia, South Africa and Namibia.

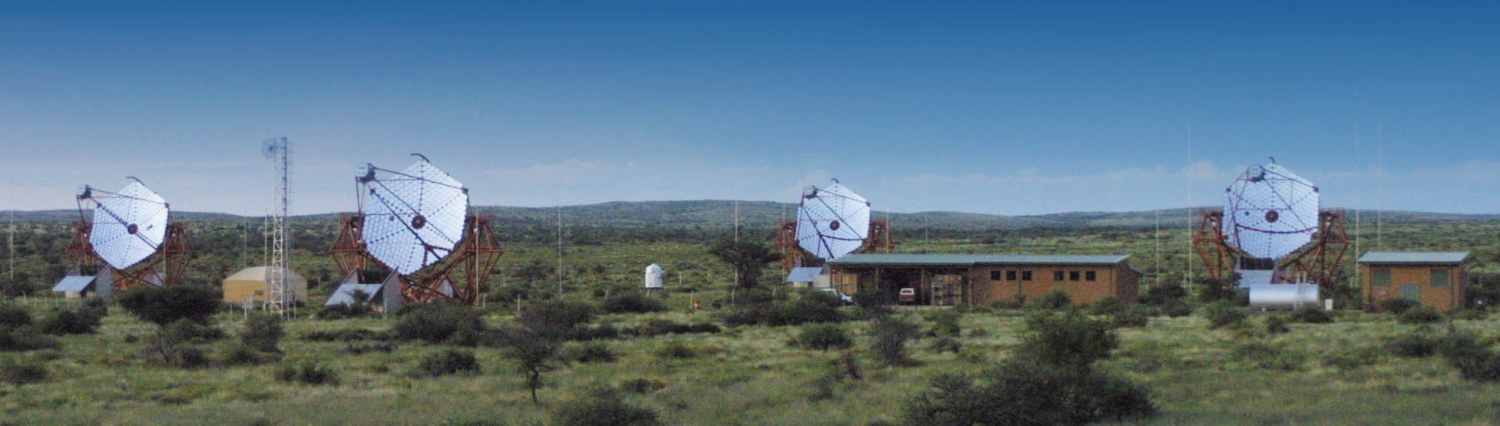

The detector: The results were obtained using the High Energy Stereoscopic System (H.E.S.S.) telescopes in Namibia, in South-West Africa. This system of four 13 m diameter telescopes is currently the most sensitive detector of very high energy gamma rays. These are absorbed in the atmosphere, where they give a short-lived shower of particles. The H.E.S.S. telescopes detect the faint, short flashes of blueish light which these particles emit (named Cherenkov light, lasting a few billionths of a second), collecting the light with big mirrors which reflect onto extremely sensitive cameras. Each image gives the position on the sky of a single gamma-ray photon, and the amount of light collected gives the energy of the initial gamma ray. Building up the images photon by photon allows H.E.S.S. to create maps of astronomical objects as they appear in gamma rays.
The H.E.S.S. telescope array represent a multi-year construction effort by an international team of more than 100 scientists and engineers. The instrument was inaugurated in September 2004 by the Namibian Prime Minister, Theo-Ben Guirab, and its first data have already resulted in a number of important discoveries, including the first astronomical image of a supernova shock wave at the highest gamma-ray energies.
Future plans: The scientists involved with H.E.S.S. are continuing to upgrade and improve the system of telescopes. Construction of a central telescope — a behemoth 30m tall — is underway, including new partner countries such as Poland. The improved system, known as H.E.S.S.-II, will be more sensitive and will cover an increased range of gamma-ray energies, enabling the H.E.S.S. team to see gamma-rays from ever more distant quasars.
