return the statistic values of all bins of a result More...

#include <operations.h>

Inheritance diagram for cass::pp82:

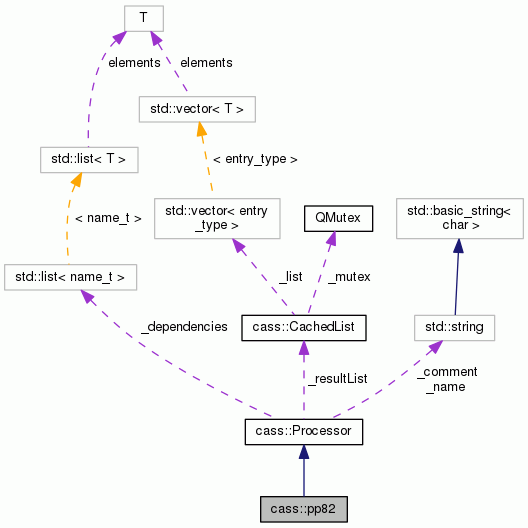

Collaboration diagram for cass::pp82:

Public Member Functions
	pp82 (const name_t &name)
	constructor More...

virtual void	process (const CASSEvent &, result_t &)
	process event More...

virtual void	loadSettings (size_t)
	load the settings of the pp More...

Public Member Functions inherited from cass::Processor
	Processor (const name_t &name)
	constructor More...

virtual	~Processor ()
	virtual destructor More...

virtual void	processEvent (const CASSEvent &event)
	process the event More...

virtual const result_t &	result (const CASSEvent::id_t eventid=0)
	retrieve a result for a given id. More...

virtual void	releaseEvent (const CASSEvent &event)
	tell the list that the result for event can be overwritten More...

result_t::shared_pointer	resultCopy (const uint64_t eventid)
	retrieve histogram for id More...

virtual void	load ()
	load the general settings More...

virtual void	aboutToQuit ()
	function that will be called when the processor is about to be deleted More...

const names_t &	dependencies ()
	Define all processors keys a processor depends on. More...

void	clearDependencies ()
	clear the dependenies More...

void	clearHistograms ()
	clear the histograms More...

virtual void	processCommand (std::string command)
	process command in pp More...

const name_t	name () const
	retrieve the name of this processor More...

bool	hide () const
	retrieve the hide flag of this processor More...

const std::string &	comment () const
	retrieve the comment of this processor More...

Protected Types
typedef CummulativeStatisticsCalculator< result_t::value_t >	cumstat_t
	define the type of cummulative statistics used More...

typedef MedianCalculator< result_t::value_t >	med_t
	define the median calculator used More...

Protected Member Functions
result_t::value_t	cummulativeStatistics (const result_t &res)
	retrieve the statistics value from the cummulative statistics calculator More...

result_t::value_t	medianCalc (const result_t &res)
	retrieve the statistics value from the median statistics calculator More...

Protected Member Functions inherited from cass::Processor
virtual void	createHistList (result_t::shared_pointer result)
	create result list. More...

void	setupGeneral ()
	general setup of the processor More...

bool	setupCondition (bool defaultConditionType=true)
	setup the condition. More...

shared_pointer	setupDependency (const std::string &depVarName, const name_t &name="")
	setup the dependecy. More...

Protected Attributes
shared_pointer	_pHist
	processor containing input result More...

std::tr1::function< cumstat_t::value_type(const cumstat_t &)>	_val
	the type of function used to retrive the wanted element More...

std::tr1::function< result_t::value_t(const result_t &)>	_value
	function to retrieve the statistics type More...

Protected Attributes inherited from cass::Processor
const name_t	_name
	the processors name More...

bool	_hide
	flag to tell whether this pp should be hidden in the dropdown list More...

std::string	_comment
	optional comment that one can add to a processor. More...

CachedList	_resultList
	the list of results More...

names_t	_dependencies
	the list of dependencies More...

shared_pointer	_condition
	pointer to the processor that will contain the condition More...

Additional Inherited Members
Public Types inherited from cass::Processor
typedef std::tr1::shared_ptr< Processor >	shared_pointer
	a shared pointer of this More...

typedef std::string	name_t
	define the name type More...

typedef std::list< name_t >	names_t
	define the list of names More...

typedef CachedList::item_type	result_t
	define the results More...

typedef CachedList::item_sp	resultsp_t
	define the shared pointer to the result More...

Detailed Description

return the statistic values of all bins of a result

Available PostProcessors:: "82": user choosable statistics value of all bins of a result

See also: Processor for a list of all commonly available cass.ini settings.

User definable Parameters:

Processor/%name%/{InputName}
Processor containing the result for which the requested statistical value is calculated.

Processor/%name%/{Statistics}
Type of statistic that one wants to retrieve. Default is "sum". Possible values are:

sum: Sum of values of all bins
mean: Mean value of values of all bins
stdv: Standart deviation of values of all bins
variance: Variance of values of all bins
median: Median value of all bins

Author: Lutz Foucar

Definition at line 1975 of file operations.h.

Member Typedef Documentation

typedef CummulativeStatisticsCalculator<result_t::value_t> cass::pp82::cumstat_t

protected

define the type of cummulative statistics used

Definition at line 2011 of file operations.h.

typedef MedianCalculator<result_t::value_t> cass::pp82::med_t

protected

define the median calculator used

Definition at line 2014 of file operations.h.

Constructor & Destructor Documentation

pp82::pp82 ( const name_t & name )

constructor

Definition at line 2620 of file operations.cpp.

References loadSettings().

Member Function Documentation

pp82::result_t::value_t pp82::cummulativeStatistics ( const result_t & res )

protected

retrieve the statistics value from the cummulative statistics calculator

Returns: the statistical value

Parameters

res	The result from which the statistical value should be calculated.

Definition at line 2673 of file operations.cpp.

References _val, cass::CummulativeStatisticsCalculator< Type >::addDistribution(), cass::Result< T >::begin(), and cass::Result< T >::datasize().

Referenced by loadSettings().

void pp82::loadSettings ( size_t )

virtual

load the settings of the pp

Reimplemented from cass::Processor.

Definition at line 2626 of file operations.cpp.

References cass::Processor::_condition, _pHist, _val, _value, cass::Log::add(), QSettings::beginGroup(), cass::Processor::createHistList(), cummulativeStatistics(), QString::fromStdString(), cass::Log::INFO, cass::CummulativeStatisticsCalculator< Type >::mean(), medianCalc(), cass::Processor::name(), cass::Processor::setupCondition(), cass::Processor::setupDependency(), cass::Processor::setupGeneral(), cass::CummulativeStatisticsCalculator< Type >::stdv(), cass::CummulativeStatisticsCalculator< Type >::sum(), QSettings::value(), and cass::CummulativeStatisticsCalculator< Type >::variance().

Referenced by pp82().

pp82::result_t::value_t pp82::medianCalc ( const result_t & res )

protected

retrieve the statistics value from the median statistics calculator

Returns: the statistical value

Parameters

res	The result from which the statistical value should be calculated.

Definition at line 2680 of file operations.cpp.

References cass::MedianCalculator< Type >::addDistribution(), cass::Result< T >::begin(), cass::Result< T >::datasize(), and cass::MedianCalculator< Type >::median().

Referenced by loadSettings().

void pp82::process	(	const CASSEvent &	evt,
		result_t &	result
	)

virtual

process event

Reimplemented from cass::Processor.

Definition at line 2687 of file operations.cpp.

References _pHist, _value, cass::CASSEvent::id(), cass::Result< T >::lock, and cass::Result< T >::setValue().

Member Data Documentation

shared_pointer cass::pp82::_pHist

protected

processor containing input result

Definition at line 2008 of file operations.h.

Referenced by loadSettings(), and process().

std::tr1::function<cumstat_t::value_type(const cumstat_t&)> cass::pp82::_val

protected

the type of function used to retrive the wanted element

Definition at line 2017 of file operations.h.

Referenced by cummulativeStatistics(), and loadSettings().

std::tr1::function<result_t::value_t(const result_t&)> cass::pp82::_value

protected

function to retrieve the statistics type

Definition at line 2020 of file operations.h.

Referenced by loadSettings(), and process().

The documentation for this class was generated from the following files:
