record 0d result into 1d result. More...

#include <operations.h>

Inheritance diagram for cass::pp64:

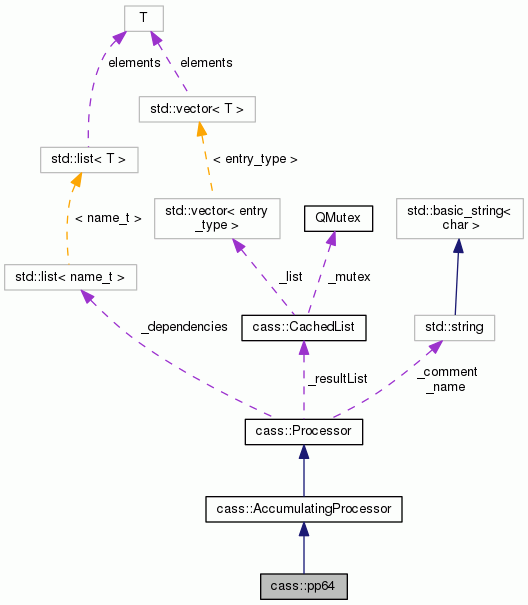

Collaboration diagram for cass::pp64:

Public Member Functions
	pp64 (const name_t &)
	constructor More...

virtual void	process (const CASSEvent &, result_t &)
	process event More...

virtual void	loadSettings (size_t)
	load the settings of the pp More...

Public Member Functions inherited from cass::AccumulatingProcessor
	AccumulatingProcessor (const name_t &name)
	constructor More...

virtual	~AccumulatingProcessor ()
	virtual destructor More...

virtual void	processEvent (const CASSEvent &evt)
	process the event More...

virtual const result_t &	result (const CASSEvent::id_t)
	retrieve a result. More...

virtual void	releaseEvent (const CASSEvent &)
	overwrite default behaviour to do nothing More...

virtual void	createHistList (result_t::shared_pointer result)
	create the list of results More...

Public Member Functions inherited from cass::Processor
	Processor (const name_t &name)
	constructor More...

virtual	~Processor ()
	virtual destructor More...

result_t::shared_pointer	resultCopy (const uint64_t eventid)
	retrieve histogram for id More...

virtual void	load ()
	load the general settings More...

virtual void	aboutToQuit ()
	function that will be called when the processor is about to be deleted More...

const names_t &	dependencies ()
	Define all processors keys a processor depends on. More...

void	clearDependencies ()
	clear the dependenies More...

void	clearHistograms ()
	clear the histograms More...

virtual void	processCommand (std::string command)
	process command in pp More...

const name_t	name () const
	retrieve the name of this processor More...

bool	hide () const
	retrieve the hide flag of this processor More...

const std::string &	comment () const
	retrieve the comment of this processor More...

Protected Attributes
shared_pointer	_hist
	processor containing input result More...

size_t	_size
	the number of bins in the result, range is fixed More...

Protected Attributes inherited from cass::AccumulatingProcessor
result_t::shared_pointer	_result
	the result that accumulates the events More...

size_t	_nbrEventsAccumulated
	the number of events the processor has accumulated More...

Protected Attributes inherited from cass::Processor
const name_t	_name
	the processors name More...

bool	_hide
	flag to tell whether this pp should be hidden in the dropdown list More...

std::string	_comment
	optional comment that one can add to a processor. More...

CachedList	_resultList
	the list of results More...

names_t	_dependencies
	the list of dependencies More...

shared_pointer	_condition
	pointer to the processor that will contain the condition More...

Additional Inherited Members
Public Types inherited from cass::Processor
typedef std::tr1::shared_ptr< Processor >	shared_pointer
	a shared pointer of this More...

typedef std::string	name_t
	define the name type More...

typedef std::list< name_t >	names_t
	define the list of names More...

typedef CachedList::item_type	result_t
	define the results More...

typedef CachedList::item_sp	resultsp_t
	define the shared pointer to the result More...

Protected Member Functions inherited from cass::Processor
virtual void	createHistList (result_t::shared_pointer result)
	create result list. More...

void	setupGeneral ()
	general setup of the processor More...

bool	setupCondition (bool defaultConditionType=true)
	setup the condition. More...

shared_pointer	setupDependency (const std::string &depVarName, const name_t &name="")
	setup the dependecy. More...

Detailed Description

record 0d result into 1d result.

Available PostProcessors:: "64": 0d into 1d (append on right end, shifting old values to the left)

appends values from results at end of this result and shifts the old values to the left.

See also: Processor for a list of all commonly available cass.ini settings.

User definable Parameters:

Processor/%name%/{InputName}
Name of the processor that conatins the result whos values will be appended to this.

Processor/%name%/{Size}
Number of values that are stored Default is 10000

Author: Stephan Kassemeyer

Definition at line 1286 of file operations.h.

Constructor & Destructor Documentation

pp64::pp64 ( const name_t & name )

constructor

Definition at line 1747 of file operations.cpp.

References loadSettings().

Member Function Documentation

void pp64::loadSettings ( size_t )

virtual

load the settings of the pp

Reimplemented from cass::Processor.

Definition at line 1753 of file operations.cpp.

References cass::Processor::_condition, _hist, _size, cass::Log::add(), QSettings::beginGroup(), cass::AccumulatingProcessor::createHistList(), QString::fromStdString(), cass::Log::INFO, cass::Processor::name(), cass::Processor::setupCondition(), cass::Processor::setupDependency(), cass::Processor::setupGeneral(), cass::toString(), and QSettings::value().

Referenced by pp64().

void pp64::process	(	const CASSEvent &	evt,
		result_t &	result
	)

virtual

process event

Note: since the rotate algorithm is quite fast, it might be faster to do it like this. Otherwise we have to branch, which might be slower

Reimplemented from cass::Processor.

Definition at line 1776 of file operations.cpp.

References _hist, _size, cass::Result< T >::begin(), cass::Result< T >::end(), cass::CASSEvent::id(), cass::Result< T >::lock, and value.

Member Data Documentation

shared_pointer cass::pp64::_hist

protected

processor containing input result

Definition at line 1300 of file operations.h.

Referenced by loadSettings(), and process().

size_t cass::pp64::_size

protected

the number of bins in the result, range is fixed

Definition at line 1303 of file operations.h.

Referenced by loadSettings(), and process().

The documentation for this class was generated from the following files:
