cass::ConversionBackend Class Reference

Base class for Converters. More...

#include <conversion_backend.h>

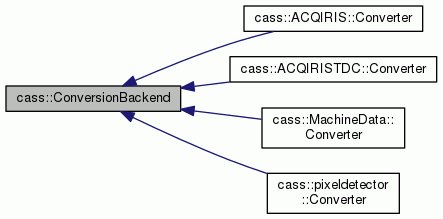

Inheritance diagram for cass::ConversionBackend:

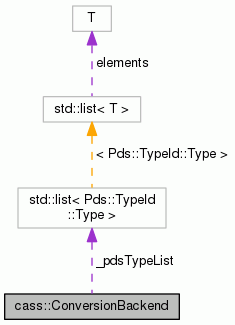

Collaboration diagram for cass::ConversionBackend:

Public Types
typedef std::tr1::shared_ptr< ConversionBackend >	shared_pointer
	typedef More...
typedef std::list< Pds::TypeId::Type >	pdstypelist_t
	typedef More...

Public Member Functions
virtual	~ConversionBackend ()
	virtual destructor to make clear this is a base class More...
virtual void	prepare (cass::CASSEvent *)
	prepare the cassevent More...
virtual void	operator() (const Pds::Xtc *xtc, cass::CASSEvent *evt)
	pure virtual operator. More...
virtual void	finalize (cass::CASSEvent *)
	finalize the event More...
const pdstypelist_t &	pdsTypeList () const
	return the list of pds type ids the converter is responsible for More...

Static Public Member Functions
static shared_pointer	instance (const std::string &type)
	return the requested converter type More...

Protected Attributes
pdstypelist_t	_pdsTypeList
	the list of pds types that the converter is responsible for More...

Detailed Description

Base class for Converters.

Inherit from this class if you would like to add a new Converter

Author

Lutz Foucar

Jochen Kuepper

Definition at line 38 of file conversion_backend.h.

Member Typedef Documentation

typedef std::list<Pds::TypeId::Type> cass::ConversionBackend::pdstypelist_t

typedef

Definition at line 45 of file conversion_backend.h.

typedef std::tr1::shared_ptr<ConversionBackend> cass::ConversionBackend::shared_pointer

typedef

Definition at line 42 of file conversion_backend.h.

Constructor & Destructor Documentation

virtual cass::ConversionBackend::~ConversionBackend ( )

inlinevirtual

virtual destructor to make clear this is a base class

Definition at line 49 of file conversion_backend.h.

Member Function Documentation

virtual void cass::ConversionBackend::finalize ( cass::CASSEvent *  )

inlinevirtual

finalize the event

Parameters

evt	the event that should be finalized

Reimplemented in cass::MachineData::Converter.

Definition at line 70 of file conversion_backend.h.

ConversionBackend::shared_pointer ConversionBackend::instance ( const std::string &  type )

static

return the requested converter type

Returns

shared pointer to the requested converter

Parameters

type	the type of the requested converter

Definition at line 28 of file conversion_backend.cpp.

Referenced by cass::FormatConverter::loadSettings().

void ConversionBackend::operator() ( const Pds::Xtc *  xtc, cass::CASSEvent *  evt  )

virtual

pure virtual operator.

call this to convert the xtc to the cass event

Parameters

xtc	the xtc that contains the data to convert
evt	the event where the converted data should be stored

Reimplemented in cass::pixeldetector::Converter, cass::ACQIRIS::Converter, cass::MachineData::Converter, and cass::ACQIRISTDC::Converter.

Definition at line 47 of file conversion_backend.cpp.

const pdstypelist_t& cass::ConversionBackend::pdsTypeList ( ) const

inline

return the list of pds type ids the converter is responsible for

Definition at line 73 of file conversion_backend.h.

virtual void cass::ConversionBackend::prepare ( cass::CASSEvent *  )

inlinevirtual

prepare the cassevent

Parameters

evt	the event shat shoul be prepared

Reimplemented in cass::MachineData::Converter.

Definition at line 55 of file conversion_backend.h.

Member Data Documentation

pdstypelist_t cass::ConversionBackend::_pdsTypeList

protected

the list of pds types that the converter is responsible for

Definition at line 84 of file conversion_backend.h.

---

The documentation for this class was generated from the following files:

• conversion_backend.h
• conversion_backend.cpp
