Simple sorter of hits from a Quadanode delayline detector. More...

#include <delayline_detector_analyzer_simple.h>

Inheritance diagram for cass::ACQIRIS::DelaylineDetectorAnalyzerSimple:

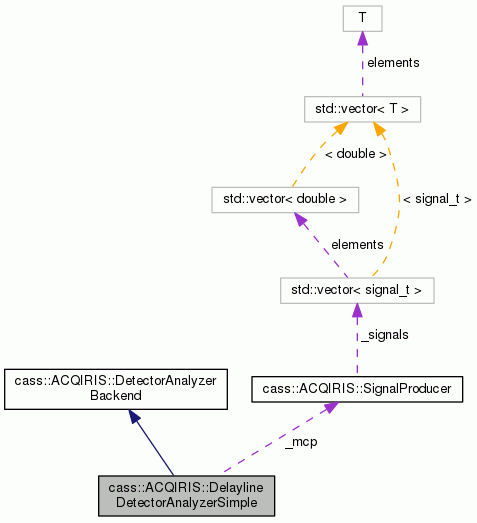

Collaboration diagram for cass::ACQIRIS::DelaylineDetectorAnalyzerSimple:

Public Member Functions
	DelaylineDetectorAnalyzerSimple ()
	constuctor More...

detectorHits_t &	operator() (detectorHits_t &hits)
	the function creating the detectorhit list More...

void	loadSettings (CASSSettings &s, DelaylineDetector &d)
	load the detector analyzers settings from .ini file More...

Public Member Functions inherited from cass::ACQIRIS::DetectorAnalyzerBackend
virtual	~DetectorAnalyzerBackend ()
	virtual destructor More...

Private Attributes
SignalProducer *	_mcp
	the mcp More...

std::pair< std::pair< SignalProducer , SignalProducer >, std::pair< SignalProducer , SignalProducer > >	_layerCombination
	the layer combination More...

std::pair< std::pair< double, double >, std::pair< double, double > >	_tsrange
	timesum ranges of the layers More...

std::pair< double, double >	_ts
	timesums of the layers More...

std::pair< double, double >	_sf
	the scalefactor for the two layers (convert ns -> mm) More...

double	_runtime
	maximum runtime over the layers More...

double	_mcpRadius
	maximum radius that det hits are allowed to be in, in ns More...

std::tr1::shared_ptr< PositionCalculator >	_poscalc
	the calculator to calc the position for the correlated wireend signals More...

Additional Inherited Members
Public Types inherited from cass::ACQIRIS::DetectorAnalyzerBackend
typedef std::tr1::shared_ptr< DetectorAnalyzerBackend >	shared_pointer
	typedef this as a shared pointer More...

Static Public Member Functions inherited from cass::ACQIRIS::DetectorAnalyzerBackend
static shared_pointer	instance (const DetectorAnalyzerType &type)
	create an instance of the right analyzer type More...

Detailed Description

Simple sorter of hits from a Quadanode delayline detector.

Do a simple sorting by checking the timesum for each MCP Signal that was identified. This is done for only one pair of anode layers.

User definable Parameters:

AcqirisDetectors/%detectorname%/Simple/{Runtime}
maximum time a signal will run over the complete delayline. Default is 150.

AcqirisDetectors/%detectorname%/Simple/{McpRadius}
Radius of the MCP in mm. Default is 88

AcqirisDetectors/%detectorname%/Simple/{LayersToUse}
Layers that should be used for sorting. Default is 0. Possible choises are:

0: Layers X and Y (Quad Anode)
1: Layers U and V (Hex Anode)
2: Layers U and W (Hex Anode)
3: Layers V and W (Hex Anode)

AcqirisDetectors/%detectorname%/Simple/{TimesumFirstLayerLow|TimesumFirstLayerHigh}
the timesum condition range for the first layer. Default is 0 | 200

AcqirisDetectors/%detectorname%/Simple/{TimesumSecondLayerLow|TimesumSecondLayerHigh}
the timesum condition range for the second layer. Default is 0 | 200

AcqirisDetectors/%detectorname%/Simple/{ScalefactorFirstLayer|ScalefactorSecondLayer}
the scalefactors that convert ns to mm for the two layers. Default is 0.4 | 0.4

Author: Lutz Foucar

Definition at line 55 of file delayline_detector_analyzer_simple.h.

Constructor & Destructor Documentation

cass::ACQIRIS::DelaylineDetectorAnalyzerSimple::DelaylineDetectorAnalyzerSimple ( )

inline

constuctor

Definition at line 60 of file delayline_detector_analyzer_simple.h.

Member Function Documentation

void DelaylineDetectorAnalyzerSimple::loadSettings	(	CASSSettings &	s,
		DelaylineDetector &	d
	)

virtual

load the detector analyzers settings from .ini file

retrieve all necessary information to be able to sort the signals of the detector to detector hits. Also retrieve the signal producers of the layers whos signals we should sort.

Parameters

s	the CASSSetting object
d	the detector object that we are belonging to

Implements cass::ACQIRIS::DetectorAnalyzerBackend.

Definition at line 190 of file delayline_detector_analyzer_simple.cpp.

References QSettings::beginGroup(), QSettings::endGroup(), cass::ACQIRIS::Hex, cass::ACQIRIS::DelaylineDetector::layers(), cass::ACQIRIS::TofDetector::mcp(), cass::ACQIRIS::Quad, and QSettings::value().

detectorHits_t & DelaylineDetectorAnalyzerSimple::operator() ( detectorHits_t & hits )

virtual

the function creating the detectorhit list

Returns: reference to the hit container

Parameters

hits	the hitcontainer

Implements cass::ACQIRIS::DetectorAnalyzerBackend.

Definition at line 109 of file delayline_detector_analyzer_simple.cpp.

References cass::fuzzyIsNull(), cass::ACQIRIS::getSignalRange(), hit, hits, cass::ACQIRIS::isUsed, cass::ACQIRIS::NbrDetectorHitDefinitions, cass::ACQIRIS::t, cass::ACQIRIS::time, cass::ACQIRIS::x, and cass::ACQIRIS::y.

Member Data Documentation

std::pair<std::pair<SignalProducer *,SignalProducer *> , std::pair<SignalProducer *,SignalProducer *> > cass::ACQIRIS::DelaylineDetectorAnalyzerSimple::_layerCombination

private

the layer combination

Definition at line 89 of file delayline_detector_analyzer_simple.h.

SignalProducer* cass::ACQIRIS::DelaylineDetectorAnalyzerSimple::_mcp

private

the mcp

Definition at line 85 of file delayline_detector_analyzer_simple.h.

double cass::ACQIRIS::DelaylineDetectorAnalyzerSimple::_mcpRadius

private

maximum radius that det hits are allowed to be in, in ns

Definition at line 105 of file delayline_detector_analyzer_simple.h.
