cass::ACQIRIS::CoM8Bit Class Reference

Finds Signals in a waveform. More...

#include <com.h>

Inheritance diagram for cass::ACQIRIS::CoM8Bit:

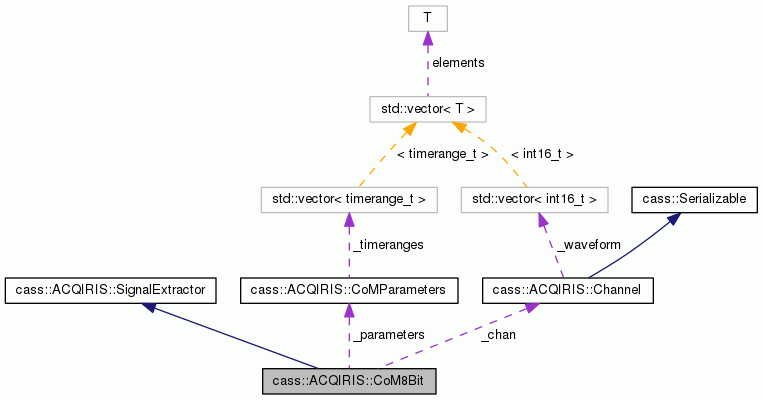

Collaboration diagram for cass::ACQIRIS::CoM8Bit:

Public Member Functions
SignalProducer::signals_t &	operator() (SignalProducer::signals_t &sig)
	extract signals form the CASSEvent More...
void	associate (const CASSEvent &evt)
	associate the event with this analyzer More...
void	loadSettings (CASSSettings &)
	load the settings of the extractor More...
Public Member Functions inherited from cass::ACQIRIS::SignalExtractor
virtual	~SignalExtractor ()
	virtual destructor More...

Private Attributes
CoMParameters	_parameters
	parameters for extracting the signals from the channels waveform More...
uint32_t	_instrument
	the instrument that the channel is in More...
size_t	_chNbr
	the channelnumber of the channel we extracting the signals from More...
const Channel *	_chan
	pointer to the channel we are extracting the signals from More...

Additional Inherited Members
Static Public Member Functions inherited from cass::ACQIRIS::SignalExtractor
static std::tr1::shared_ptr< SignalExtractor >	instance (SignalExtractorType type)
	creates an instance of the requested extractor type More...

Detailed Description

Finds Signals in a waveform.

Analyzes a waveform and find signals when they have three consecutive points above the defined threshold. It then does all the further analysis of the identified Signal.

This class will work on waveforms when a datapoint depth of 8 bit is chosen

User settable parameters via CASS.ini:
One can set these parameters for each SignalProducer of the Detectortype. Therefore the settings will be for the the following signal producers:

• For MCP in Delayline and TofDetectors its :
  • AcqirisDetectors/detectorname%/MCP
• For Layer Wireends in Delaylinedetectors its:
  • AcqirisDetectors/detectorname%/Layername%/Wireendname%

User definable Parameters:

.../CenterOfMass/{AcqirisInstrument}
Acqiris Instrument that this channel is in:

• 8: Camp (Acqiris Multiinstrument with 5 Cards (20 Channels))
• 4: AMO I-ToF
• 5: AMO Magnetic Bottle
• 2: AMO Gas Detector

.../CenterOfMass/{ChannelNumber}
Channel within the instrument (starts counting from 0)

.../CenterOfMass/Timeranges/(0,1,...)/{LowerLimit|UpperLimit}
set of timeranges. One can set more than one range of interest. Default is no timerange, which will result in no signal will be found.

.../CenterOfMass/{Polarity}
the polarity of the signals that we are interested in:

• 1: Positive Polarity
• 2: Negative Polarity

.../CenterOfMass/{Threshold}
the theshold for the signals in Volts:

Note

we should let this class only identify the Signals and create the Signal list. The further analysis of the Signal should be done, when the user requests a property.

Author

Lutz Foucar

Definition at line 87 of file com.h.

Member Function Documentation

void CoM8Bit::associate ( const CASSEvent &  evt )

virtual

associate the event with this analyzer

Extracts a pointer the channel for which we are there for from the event with the help of extractRightChannel.

Parameters

evt	The event from which we get the pointer to the channel.

Implements cass::ACQIRIS::SignalExtractor.

Definition at line 199 of file com.cpp.

void CoM8Bit::loadSettings ( CASSSettings &  s )

virtual

load the settings of the extractor

Calls the loadSettings implementation to retrieve all information to be able extract the signals from _channel. And to be able to extract the right channel from the events in associate().

Parameters

s	the CASSSettings object to retrieve the information from

Implements cass::ACQIRIS::SignalExtractor.

Definition at line 194 of file com.cpp.

References cass::ACQIRIS::CenterOfMass::loadSettings().

SignalProducer::signals_t & CoM8Bit::operator() ( SignalProducer::signals_t &  sig )

virtual

extract signals form the CASSEvent

Calls com to extract the Signal from _chan. For details how see com.

Returns

reference of the input result container

Parameters

[in]

sig

this is the container for the results

Implements cass::ACQIRIS::SignalExtractor.

Definition at line 188 of file com.cpp.

Member Data Documentation

const Channel* cass::ACQIRIS::CoM8Bit::_chan

private

pointer to the channel we are extracting the signals from

Definition at line 129 of file com.h.

size_t cass::ACQIRIS::CoM8Bit::_chNbr

private

the channelnumber of the channel we extracting the signals from

Definition at line 126 of file com.h.

uint32_t cass::ACQIRIS::CoM8Bit::_instrument

private

the instrument that the channel is in

Definition at line 123 of file com.h.

CoMParameters cass::ACQIRIS::CoM8Bit::_parameters

private

parameters for extracting the signals from the channels waveform

Definition at line 120 of file com.h.

---

The documentation for this class was generated from the following files:

• com.h
• com.cpp
