Description of telescope position, array offets and shower parameters. More...

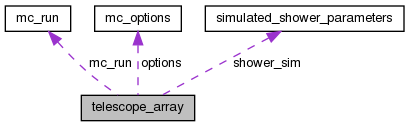

Collaboration diagram for telescope_array:
Data Fields | |
| double | altitude |
| Nominal altitude angle of telescope system [deg]. More... | |
| double | aweight [MAX_ARRAY] |
| Area weight for non-uniformly distributed core offsets. More... | |
| double | azimuth |
| Nominal azimuth angle of telescope system [deg]. More... | |
| int | event |
| int | max_tel |
| Maximum number of telescopes acceptable (MAX_TEL) | |
| struct mc_run | mc_run |
| int | narray |
| Number of arrays with random shifts per shower. | |
| int | ntel |
| Number of telescopes simulated per array. | |
| double | obs_height |
| Height of observation level [cm]. | |
| struct mc_options | options |
| File names etc. More... | |
| double | refpos [3] |
| Reference position with respect to obs. More... | |
| double | rtel [MAX_TEL] |
| Radius of spheres enclosing telescopes [cm]. | |
| int | run |
| struct simulated_shower_parameters | shower_sim |
| double | source_altitude |
| Altitude of assumed source. More... | |
| double | source_azimuth |
| Azimuth of assumed source. More... | |
| double | toff |
| Time offset from first interaction to the moment. More... | |
| int | with_aweight |
| Is 1 if input data came with weights. | |
| double | xoff [MAX_ARRAY] |
| X offsets of the randomly shifted arrays [cm]. | |
| double | xtel [MAX_TEL] |
| X positions of telescopes ([cm] -> north) | |
| double | yoff [MAX_ARRAY] |
| Y offsets of the randomly shifted arrays [cm]. | |
| double | ytel [MAX_TEL] |
| Y positions of telescopes ([cm] -> west) | |
| double | ztel [MAX_TEL] |
| Z positions of telescopes ([cm] -> up) | |
Detailed Description
Field Documentation
◆ altitude
| double telescope_array::altitude |
◆ aweight
| double telescope_array::aweight[MAX_ARRAY] |
(may be 0 when older data with uniform offsets are read). [cm^2]
◆ azimuth
| double telescope_array::azimuth |
◆ options
| struct mc_options telescope_array::options |
◆ refpos
| double telescope_array::refpos[3] |
level [cm]
◆ source_altitude
| double telescope_array::source_altitude |
◆ source_azimuth
| double telescope_array::source_azimuth |
◆ toff
| double telescope_array::toff |
when the extrapolated primary flying with the vacuum speed of light would be at the observation level.
The documentation for this struct was generated from the following file:
