Auxiliary information for "Spectrum and extension of the inverse-Compton emission of the Crab Nebula from a combined Fermi-LAT and H.E.S.S. analysis" (Astronomy & Astrophysics, 2024)

Link to the paper:

Figure 2

H.E.S.S. flux points
(Errors contain statistical uncertainties only. Upper limits are at 95% confidence level.)


H.E.S.S. mono flux points:

E [TeV] E^2 dN/dE [TeV cm-2 s-1] E^2 dN/dE Error [TeV cm-2 s-1]
0.237 7.29e-11 1.15e-12
0.316 6.49e-11 9.8e-13
0.422 5.88e-11 9.3e-13
0.562 5.37e-11 9.21e-13
0.75 4.82e-11 9.34e-13
1 4.27e-11 9.46e-13
1.33 3.49e-11 9.2e-13
1.78 2.89e-11 9.16e-13
2.37 2.65e-11 9.89e-13
3.16 2.03e-11 1.02e-12
4.22 1.57e-11 1.09e-12
5.62 1.32e-11 1.21e-12
7.5 1.12e-11 1.45e-12
10 7.24e-12 1.55e-12

As ECSV file: [ECSV]

H.E.S.S. stereo flux points:

E [TeV] E^2 dN/dE [TeV cm-2 s-1] E^2 dN/dE Error [TeV cm-2 s-1]
0.604 5.35e-11 1.86e-12
0.698 4.64e-11 1.6e-12
0.806 4.35e-11 1.21e-12
0.931 3.92e-11 1.11e-12
1.07 4.05e-11 1.13e-12
1.24 3.5e-11 1.05e-12
1.43 3.08e-11 1.01e-12
1.65 3.12e-11 1.02e-12
1.91 2.8e-11 9.82e-13
2.21 2.41e-11 9.4e-13
2.55 2.19e-11 9.06e-13
2.94 2.03e-11 9.05e-13
3.4 1.84e-11 8.91e-13
3.92 1.69e-11 9.02e-13
4.53 1.49e-11 9.09e-13
5.23 1.28e-11 8.9e-13
6.04 1.13e-11 8.7e-13
6.98 9.19e-12 8.29e-13
8.06 9.41e-12 8.8e-13
9.31 7.94e-12 8.59e-13
10.7 7.09e-12 8.57e-13
12.4 5.9e-12 8.25e-13
14.3 7.33e-12 1.02e-12
16.5 3.8e-12 7.68e-13
19.1 4.46e-12 8.54e-13
22.1 2.84e-12 7.5e-13
25.5 2.13e-12 6.9e-13
29.4 1.67e-12 6.53e-13
34 1.03e-12 5.95e-13
39.2 3.26e-12 1.06e-12
45.3 2.68e-12 9.83e-13
52.3 1.23e-12 7.1e-13
60.4 1.46e-12 9.32e-13
69.8 1.9e-12 1.13e-12
80.6 < 7.51e-13
93.1 9.98e-13 1.03e-12

As ECSV file: [ECSV]

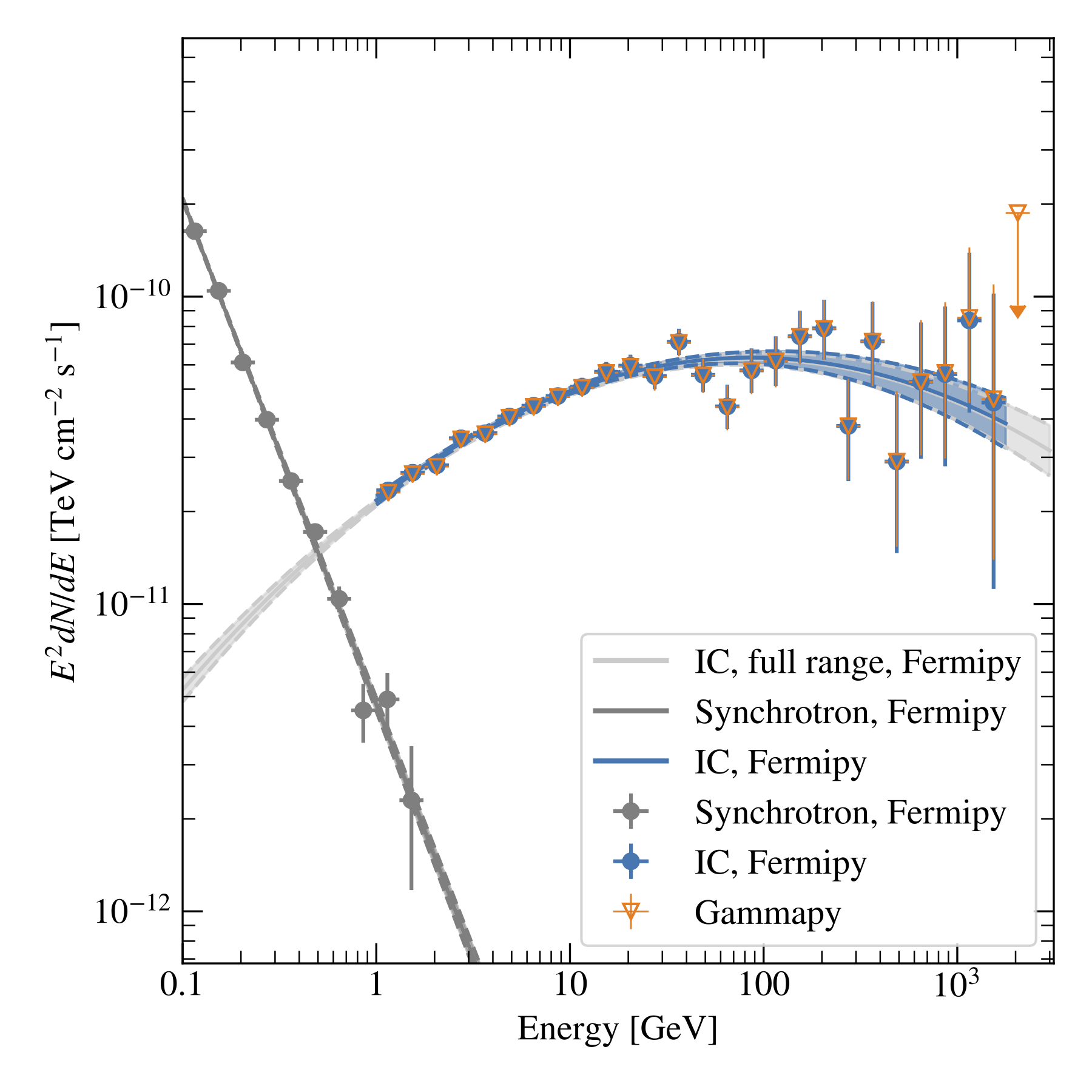

Figure 4

Fermi-LAT flux points
(Errors contain statistical uncertainties only. Upper limits are at 95% confidence level.)


Fermi-LAT flux points: (derived with Gammapy, yellow points in the plot above)

E [GeV] E^2 dN/dE [TeV cm-2 s-1] E^2 dN/dE Error [TeV cm-2 s-1]
1.15 2.3e-11 1.02e-12
1.54 2.65e-11 1.13e-12
2.05 2.8e-11 1.26e-12
2.74 3.44e-11 1.51e-12
3.65 3.57e-11 1.74e-12
4.87 4.04e-11 2.08e-12
6.49 4.38e-11 2.47e-12
8.66 4.71e-11 2.9e-12
11.5 5.06e-11 3.43e-12
15.4 5.66e-11 4.2e-12
20.5 5.92e-11 4.93e-12
27.4 5.47e-11 5.42e-12
36.5 7.08e-11 7.05e-12
48.7 5.54e-11 7.17e-12
64.9 4.37e-11 7.35e-12
86.6 5.74e-11 9.74e-12
115 6.17e-11 1.17e-11
154 7.41e-11 1.48e-11
205 7.86e-11 1.77e-11
274 3.79e-11 1.43e-11
365 7.14e-11 2.26e-11
487 2.91e-11 1.68e-11
649 5.28e-11 2.64e-11
866 5.65e-11 3.26e-11
1.15e+03 8.54e-11 4.93e-11
1.54e+03 4.64e-11 4.64e-11
2.05e+03 < 1.87e-10

As ECSV file: [ECSV]

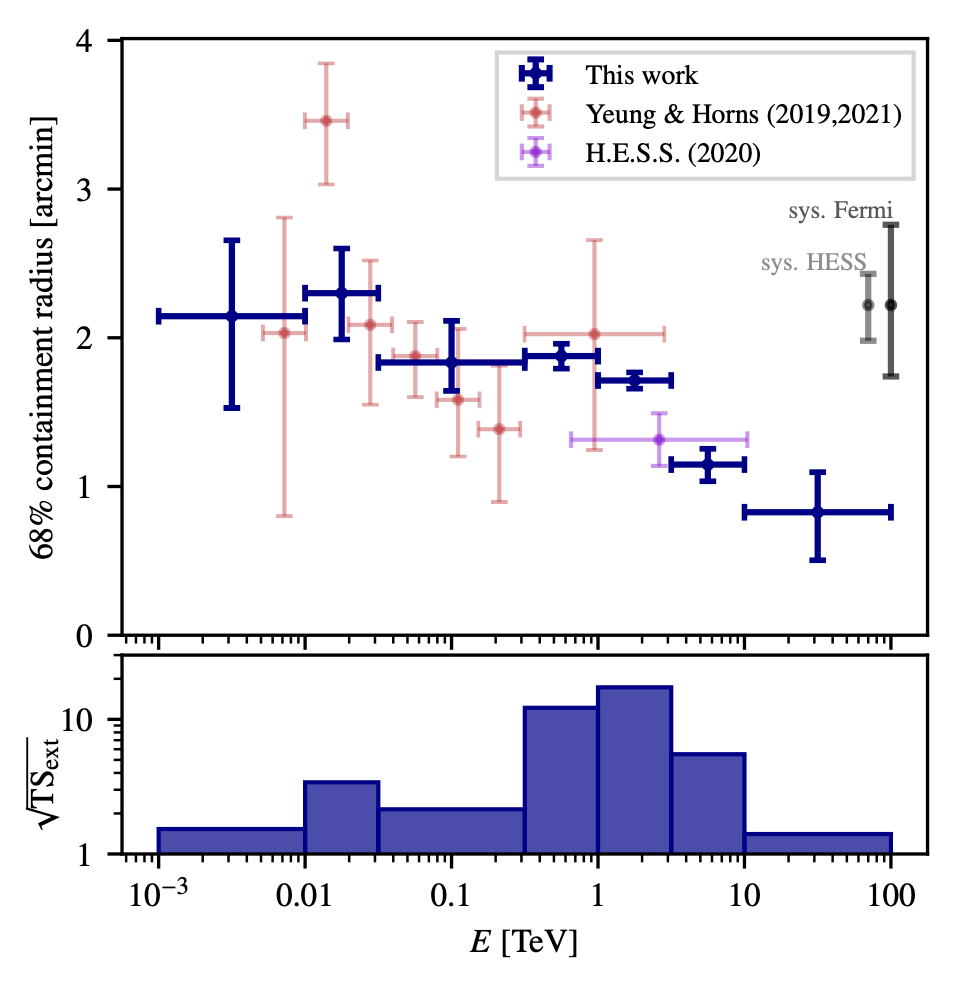

Figure 6



Extension data points: (Errors contain statistical uncertainties only)

E_min [TeV] E_ref [TeV] E_max [TeV] R_68% [arcmin] R_68% Positive Error [arcmin] R_68% Negative Error [arcmin]
0.001 0.00316 0.01 2.13 0.507 0.613
0.01 0.0178 0.0316 2.29 0.298 0.309
0.0316 0.1 0.316 1.82 0.278 0.19
0.316 0.562 1 1.87 0.0823 0.0839
1 1.78 3.16 1.7 0.0542 0.0547
3.16 5.62 10 1.14 0.106 0.112
10 31.6 100 0.822 0.268 0.321

As ECSV file: [ECSV]
