Auxiliary Information "Time-resolved hadronic particle acceleration in the recurrent nova RS Ophiuchi"
(H.E.S.S. Collaboration, Science 2022)

Link to the paper: https://doi.org/10.1126/science.abn0567

Ilustrations (Image Credits: DESY/H.E.S.S., Science Communication Lab)

img img

Main Text

Figure 1: Significance map T_0 + 1-5 days: [FITS]
Significance Map Days 1-5

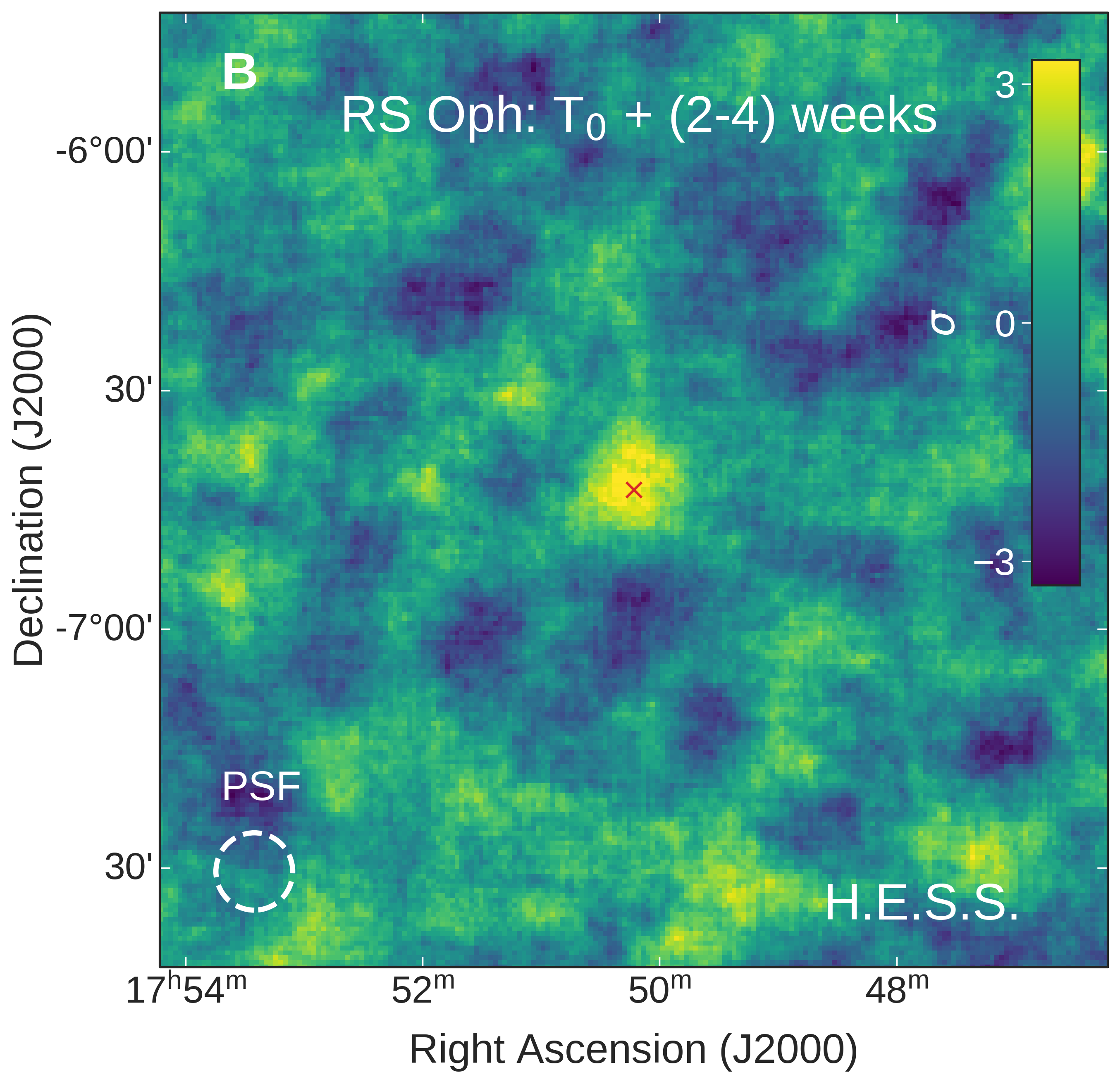

Significance map T_0 + 2-4 weeks: [FITS]
Significance Map Weeks 2-4

Figure 2: Gamma-ray light curves of RS Oph:
Light Curve HESS + Fermi-LAT
Jupyter notebook to recreate figure 2: [ipynb]
Associated data files for Fermi and HESS

H.E.S.S. light curve data points:
Time in MJD Width of time bin (days) Energy Flux (erg/cm^2/s) Energy Flux Error (erg/cm^2/s)
59435.865 0.101 1.96e-12 4.6e-13
59436.858 0.111 4.69e-12 5.9e-13
59437.852 0.111 7.8e-12 1.1e-12
59438.868 0.104 7.48e-12 7e-13
59439.852 0.111 4.45e-12 4.7e-13
59458.283 6.541 5.86e-13 1.2e-13

Fermi-LAT light curve data points
Time in MJD Width of time bin (days) Energy Flux (erg/cm^2/s) Energy Flux Error (erg/cm^2/s)
59434.676 0.359 5.31e-10 1.6e-10
59435.393 0.359 4.15e-09 3.6e-10
59435.853 0.101 5.01e-09 6e-10
59436.345 0.391 4.52e-09 3.5e-10
59436.847 0.111 3.47e-09 7.2e-10
59437.343 0.385 3.44e-09 3.3e-10
59437.840 0.111 3.49e-09 5.5e-10
59438.351 0.400 2.43e-09 2.9e-10
59438.856 0.104 1.86e-09 4.6e-10
59439.345 0.384 1.85e-09 2.7e-10
59439.841 0.112 1.6e-09 4.3e-10
59440.637 0.685 9.9e-10 1.7e-10
59441.823 0.500 9.49e-10 1.9e-10
59442.823 0.500 7.74e-10 1.8e-10
59443.823 0.500 9.13e-10 1.9e-10
59445.823 1.500 3.69e-10 9.3e-11
59449.527 2.204 2.71e-10 6.3e-11
59458.273 6.541 1.4e-10 3.2e-11
Figure 3: RS Oph gamma-ray spectra from H.E.S.S. and Fermi-LAT for nights 1 and 5:
Spectral Energy Distribution Nights 1 and 5
Jupyter notebook to recreate figure 3: [ipynb]
Associated data files for day1 and day5
Also available: day2 , day3 , day4

Night 1:

Instrument Energy (GeV) Energy Flux (erg/cm^2/s) Energy Flux Error (erg/cm^2/s) Upper Limit (erg/cm^-2/s)
Fermi-LAT 0.095 3.22e-10 7.54e-11 -
Fermi-LAT 0.215 7.82e-10 9.4e-11 -
Fermi-LAT 0.489 9.71e-10 1.15e-10 -
Fermi-LAT 1.108 1.3e-09 1.45e-10 -
Fermi-LAT 2.512 1.11e-09 2.44e-10 -
Fermi-LAT 5.696 6.03e-10 2.55e-10 -
Fermi-LAT 12.915 9.04e-10 4.31e-10 -
CT5 124.600 1.23e-11 3.95e-12 -
CT5 176.200 8.7e-12 2.66e-12 -
CT1-4 227.920 5.28e-12 2.45e-12 -
CT1-4 285.339 3.23e-12 1.27e-12 -
CT1-4 877.499 - - 4.98e-13

Night 5:

Instrument Energy (GeV) Energy Flux (erg/cm^2/s) Energy Flux Error (erg/cm^2/s) Upper Limit (erg/cm^-2/s)
Fermi-LAT 0.076 - - 2.24e-10
Fermi-LAT 0.120 - - 1.56e-10
Fermi-LAT 0.189 2.77e-10 1.02e-10 -
Fermi-LAT 0.300 5.15e-10 9.7e-11 -
Fermi-LAT 0.475 3.95e-10 1.35e-10 -
Fermi-LAT 0.753 4.57e-10 1.15e-10 -
Fermi-LAT 1.192 3.31e-10 1.51e-10 -
Fermi-LAT 1.888 2.2e-10 1.38e-10 -
Fermi-LAT 4.735 4.89e-10 3.16e-10 -
Fermi-LAT 2.990 - - 3.51e-10
Fermi-LAT 7.499 - - 3.27e-10
CT1-4 245.646 4.93e-12 1.22e-12 -
CT1-4 357.222 3.3e-12 8.6e-13 -
CT1-4 519.477 2.04e-12 8.65e-13 -
CT1-4 700.922 2.29e-12 8.36e-13 -
CT1-4 1019.291 1.3e-12 5.76e-13 -
CT1-4 1721.783 - - 1.27e-12

Supplementary Material

The code used for the modelling is available via github
(Individual files for the modelling code are temporarily linked here: setup.f90 , myparameters.f90 , nonthermal_particles.f90 )

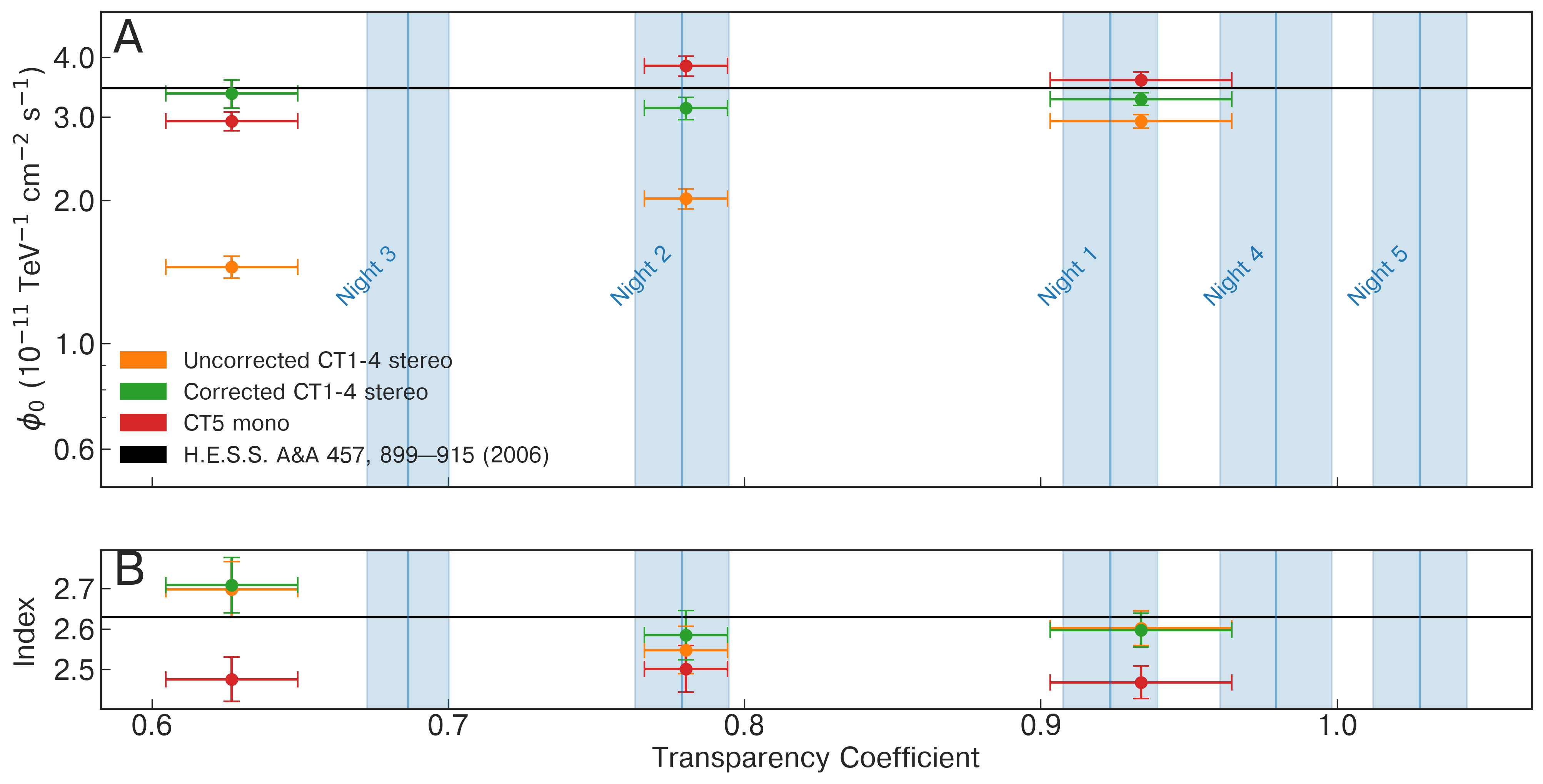

Figure S1:
Atmospheric transparency correction of Crab Nebula observations
Crab flux with atmospheric corrections
Crab Nebula spectrum reference: Aharonian et al. (2006), A&A, 457, 899-915 (Table 6, PL, std cuts)
Norm at 1 TeV: 3.45 ± 0.05 x 10-11 cm-2 s-1 TeV-1 Index: 2.63 ± 0.01

Dataset Transparency Coefficient Flux at 1 TeV (cm^-2s^-1TeV^-1) Error on Flux at 1 TeV (cm^-2s^-1TeV^-1) Spectral Index Error on Spectral Index
Uncorrected CT1-4 0.628 1.451e-11 0.077e-11 2.698 0.069
Corrected CT1-4 0.628 3.36e-11 0.23e-11 2.709 0.069
CT5 mono 0.628 2.94e-11 0.133e-11 2.4754 0.0549
Uncorrected CT1-4 0.781 2.019e-11 0.098e-11 2.548 0.059
Corrected CT1-4 0.781 3.13e-11 0.17e-11 2.585 0.061
CT5 mono 0.781 3.84e-11 0.184e-11 2.5009 0.0579
Uncorrected CT1-4 0.934 2.938e-11 0.095e-11 2.602 0.043
Corrected CT1-4 0.934 3.27e-11 0.10e-11 2.597 0.042
CT5 mono 0.934 3.59e-11 0.141e-11 2.4676 0.0405

Figure S2: Schematic of external shock model
RS Oph Nova graphic

Figure S3: Temporal shock evolution [PDF]
Shock evolution model

Figure S4: Cooling times
Cooling time

Figure S5: Magnetic and photon field evolution [PDF]
Magnetic field and energy density evolution

Figure S6: Particle energy and luminosity evolution [PDF]
Maximum energy and luminosity evolution

Figure S7: Single-zone particle spectra evolution [PDF]
Electron and proton spectra

Figure S8: Nightly inverse Compton spectra [PDF]
Inverse Compton emission model for five nights

Figure S9: Nightly hadronic emission spectra [PDF]
Proton-proton emission model for five nights

Spectral data points for figures S8 and S9 given in the tables below for nights 2-4. For nights 1 and night 5, see table above corresponding to figure 3.

Night 2:

Instrument Energy (GeV) Energy Flux (erg/cm^2/s) Energy Flux Error (erg/cm^2/s) Upper Limit (erg/cm^-2/s)
Fermi-LAT 0.124 - - 7.4e-10
Fermi-LAT 0.166 8.92e-10 1.8e-10 -
Fermi-LAT 0.222 6.71e-10 1.68e-10 -
Fermi-LAT 0.298 9.68e-10 1.93e-10 -
Fermi-LAT 0.398 9.11e-10 1.95e-10 -
Fermi-LAT 0.533 7.71e-10 2.04e-10 -
Fermi-LAT 0.713 9.28e-10 2.26e-10 -
Fermi-LAT 0.954 6.43e-10 2.19e-10 -
Fermi-LAT 1.277 1.12e-09 2.97e-10 -
Fermi-LAT 1.709 8.41e-10 2.94e-10 -
Fermi-LAT 2.286 5.36e-10 2.63e-10 -
Fermi-LAT 3.059 8.5e-10 3.77e-10 -
Fermi-LAT 5.477 5.82e-10 4.12e-10 -
Fermi-LAT 4.093 - - 3e-10
Fermi-LAT 7.329 - - 1.4e-09
Fermi-LAT 9.807 - - 6.98e-10
Fermi-LAT 13.122 - - 2.11e-09
CT5 115.500 3.66e-11 1.56e-11 -
CT5 127.100 1.76e-11 9.28e-12 -
CT5 139.900 2.55e-11 7.99e-12 -
CT5 154.000 1.8e-11 7.22e-12 -
CT5 177.200 1.5e-11 4.17e-12 -
CT5 214.500 9.74e-12 3.66e-12 -
CT1-4 245.646 6.76e-12 1.68e-12 -
CT1-4 357.222 4.06e-12 1.12e-12 -
CT1-4 519.477 1.82e-12 1.06e-12 -
CT1-4 700.922 2.25e-12 1.11e-12 -
CT1-4 1375.312 - - 1.35e-12

Night 3:

Instrument Energy (GeV) Energy Flux (erg/cm^2/s) Energy Flux Error (erg/cm^2/s) Upper Limit (erg/cm^-2/s)
Fermi-LAT 0.124 - - 3.4e-10
Fermi-LAT 0.166 4.13e-10 1.35e-10 -
Fermi-LAT 0.222 5.28e-10 1.51e-10 -
Fermi-LAT 0.298 6.78e-10 1.61e-10 -
Fermi-LAT 0.398 6.93e-10 1.63e-10 -
Fermi-LAT 0.533 6.21e-10 1.72e-10 -
Fermi-LAT 0.713 5.23e-10 1.62e-10 -
Fermi-LAT 0.954 8e-10 2.22e-10 -
Fermi-LAT 1.277 6.17e-10 2.13e-10 -
Fermi-LAT 1.709 5.31e-10 2.34e-10 -
Fermi-LAT 2.286 5.11e-10 2.5e-10 -
Fermi-LAT 3.059 6.29e-10 3.18e-10 -
Fermi-LAT 4.093 - - 7.08e-10
Fermi-LAT 5.477 - - 9.68e-10
Fermi-LAT 7.329 7.06e-10 4.99e-10 -
Fermi-LAT 9.807 9.37e-10 6.61e-10 -
Fermi-LAT 13.122 - - 2.28e-09
Fermi-LAT 17.558 - - 1.14e-09
CT5 122.400 2.21e-11 7.1e-12 -
CT5 146.700 1.64e-11 4.63e-12 -
CT5 177.600 1.85e-11 3.94e-12 -
CT5 215.000 9.17e-12 3.49e-12 -
CT5 260.400 1.26e-11 3.53e-12 -
CT5 315.500 7.23e-12 3.48e-12 -
CT1-4 245.646 1.63e-11 3.19e-12 -
CT1-4 357.222 6.68e-12 1.83e-12 -
CT1-4 519.477 4.81e-12 1.96e-12 -
CT1-4 1183.995 - - 6.9e-13

Night 4:

Instrument Energy (GeV) Energy Flux (erg/cm^2/s) Energy Flux Error (erg/cm^2/s) Upper Limit (erg/cm^-2/s)
Fermi-LAT 0.120 - - 2.56e-10
Fermi-LAT 0.189 - - 2.49e-10
Fermi-LAT 0.300 - - 2.91e-10
Fermi-LAT 0.475 4.92e-10 1.52e-10 -
Fermi-LAT 0.753 4.5e-10 1.13e-10 -
Fermi-LAT 1.192 5.36e-10 2.02e-10 -
Fermi-LAT 1.888 5.15e-10 2.23e-10 -
Fermi-LAT 2.990 - - 6.07e-10
Fermi-LAT 4.735 - - 2.43e-10
CT1-4 211.474 1.09e-11 2.28e-12 -
CT1-4 307.529 5.75e-12 1.2e-12 -
CT1-4 447.214 7.24e-12 1.48e-12 -
CT1-4 650.345 2.59e-12 8.31e-13 -
CT1-4 945.742 1.85e-12 8.9e-13 -
CT1-4 1597.544 - - 6.31e-13

Figure S10: Effect of gamma-gamma attenuation [PDF]
Attenuation due to gamma-gamma absorption
